Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 4T E2 25kmh 2009 (EMEA) DERBI

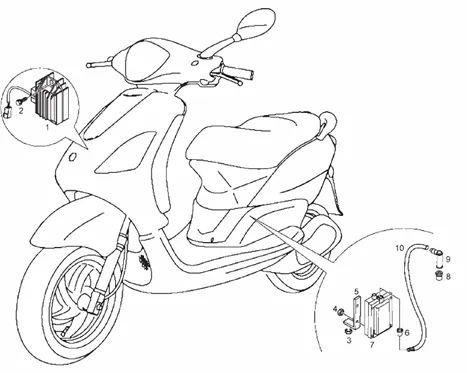

Circuit électrique : 14 INSTALLATION ELECTRIQUE
Installation electrique
Search
REGULATEUR DE TENSION OEM PIAGGIO 50 TYPHOON, NRG 2018 >, VESPA PRIMAVERA 4T 2013 >, SPRINT 4T 2013 >/GILERA SMT 2018 >/DERBI SENDA 2018 >/APRILIA RS4, SX, RX 2018 >-641788

1
P2R reference P2R reference 67944
Maker reference Maker reference 641788

REGULATEUR DE TENSION OEM PIAGGIO 50 TYPHOON, NRG 2018 >, VESPA PRIMAVERA 4T 2013 >, SPRINT 4T 2013 >/GILERA SMT 2018 >/DERBI SENDA 2018 >/APRILIA RS4, SX, RX 2018 >-641788

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

2
P2R reference P2R reference 72723
Maker reference Maker reference 434541

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

2
P2R reference P2R reference 72723
Maker reference Maker reference B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

More information

Quantity required : 1

241937 - ECROU

3
P2R reference P2R reference 65984
Maker reference Maker reference 241937

241937 - ECROU

More information

Quantity required : 1

241937 - ECROU

4
P2R reference P2R reference 65984
Maker reference Maker reference 241937

241937 - ECROU

More information

Quantity required : 1

582175 - ECROU

5
P2R reference P2R reference 67246
Maker reference Maker reference 582175

582175-NUT

More information

Quantity required : 1

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

6
P2R reference P2R reference 65966
Maker reference Maker reference 231571

CAPUCHON ISOLANT OEM PIAGGIO COMMON A LA RANGE-231571

More information

Quantity required : 1

CM268002 - DISPOSITIF

7
P2R reference P2R reference 139456
Maker reference Maker reference CM268002

CM268002-DISPOSITIF

More information

Quantity required : 1

639975 - CENTRALINA ELECT.

7
P2R reference P2R reference 67863
Maker reference Maker reference 639975

639975-CENTRALINA ELECT.

More information

Quantity required : 1

GUIDE CABLE HT OEM PIAGGIO COMMON A LA RANGE-828339

8
P2R reference P2R reference 68750
Maker reference Maker reference 828339

GUIDE CABLE HT OEM PIAGGIO COMMON A LA RANGE-828339

More information

Quantity required : 1

ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348

9
P2R reference P2R reference 70969
Maker reference Maker reference 969348

ANTIPARASITE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-969348

More information

Quantity required : 1

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

10
P2R reference P2R reference 65668
Maker reference Maker reference 0803415

CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341

More information

Quantity required : 1
