Vehicle Exploded View - DERBI BOULEVARD 50 Boulevard 50 4T E2 25kmh 2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

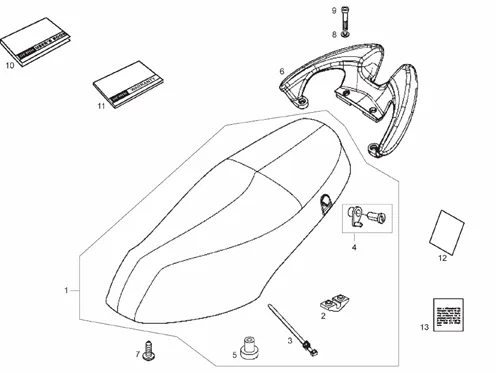

Châssis - parties plastiques - carrosseries : 6 SELLE/SIEGES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1142/Boulevard_50_4T_E2_25kmh_2009_(EMEA)_6.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/9/img/67669.jpg)
1 |
SEAT OEM PIAGGIO 50-125 FLY 2005 > 2011-6219790012 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
2 |
PONTET DOIGT DE LOCK OEM PIAGGIO COMMON A LA RANGE-296743 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
3 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-298729 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/8/8/img/68188.jpg)
4 |
BODY DE LOCK DE SEAT OEM PIAGGIO 50-125 FLY 2005 >, TYPHOON 2011 >/APRILIA 50-125 SR MOTARD 2011 >-652695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
5 |
BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/1/3/img/67713.jpg)
6 |
GRIP PASSENGER OEM PIAGGIO 50-125 FLY 2008 > 2011 BLACK-621994000C More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/3/img/66043.jpg)
7 |
SCREW - (6X20) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -259830 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
8 |
WASHER PLATE (8, 4X15X1, 5) OEM PIAGGIO COMMON A LA RANGE-003058 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/6/img/67066.jpg)
9 |
SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606 More informationQuantity required : 1 |
|||||||||
11 |
635862 - MANUEL D'EMPLOI ET D'ENTR. More informationQuantity required : 1 |
|||||||||
|
12 |
|
|||||||||
|
13 |
663683-LABEL HOMOLOGATION More informationQuantity required : 1 |
|||||||||
