Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

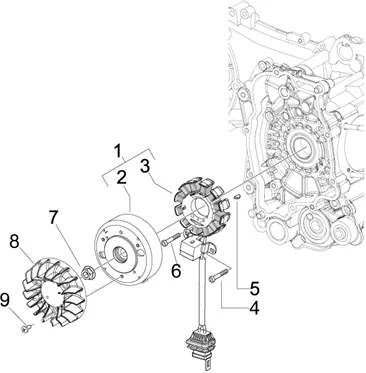

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1135/Boulevard_100_4T_2010-2011_(EMEA)_01.21.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/0/img/70960.jpg)
1 |
IGNITION "PIAGGIO GENUINE PART" 50 FLY, ZIP, LIBERTY 4 STROKE/ VESPA 50 LX, LXV, PRIMAVERA, SPRINT, S 4 STROKE -9692975- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/7/img/70947.jpg)
2 |
ROTOR D'ALLUMAGE OEM PIAGGIO 50 FLY 4T 2006 >, LIBERTY 4T 2006 >, ZIP 4T 1998 > 2005, VESPA LX 4T 2006 >, VESPA-S 4T 2010 >, PRIMAVERA 4T 2013/APRILIA 50 SCARABEO 4T 2002 >, SPORT-CITY 4T 2008 >-969243 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/1/img/70941.jpg)
3 |
STATOR IGNITION SCOOTER OEM PIAGGIO 50 ZIP 4T, LIBERTY 4T, FLY 4T, VESPA LX 4T, VESPA-S 4T, VESPA PRIMAVERA 4T, VESPASPRINT 4T/APRILIA 50 SCARABEO 4T-969228 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/4/img/70514.jpg)
4 |
SCREW CRUCIFORME (5X14) OEM PIAGGIO COMMON A LA RANGE-873979 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
5 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
6 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
7 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
8 |
841645 - VENTILATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
9 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 3 |
