Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

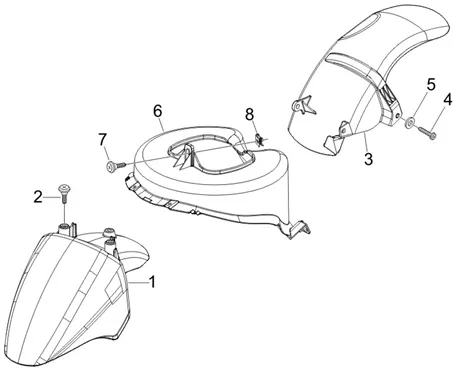

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1135/Boulevard_100_4T_2010-2011_(EMEA)_02.33.png)
1 |
60029300DE-GUARD-MUD FRONT * More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/6/img/67426.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" FLY 50/125 WHITE 553 -60029300XB More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/2/img/67422.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 FLY 2005 > 2011 BLACK 94-6002930090 More informationQuantity required : 1 |
|||||||||
|
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 FLY WHITE 724-6002930087 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/0/img/67420.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 FLY 2006 > 2011 UNPAINTED READY TO PAINT-600293 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/2/4/img/67424.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 FLY 2005 > 2011 GREY 738/A-60029300F2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
2 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 3 |
|||||||||
|
3 |
1B005526 - RR MUDGARD ASSY More informationQuantity required : 1 |
|||||||||
|
3 |
MUDGUARD/LECHE REAR WHEEL OEM PIAGGIO 50 FLY 2006 > 2011, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014, 125 FLY 2006 > 2011-1B012164 More informationQuantity required : 1 |
|||||||||
|
4 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
5 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/1/7/img/67717.jpg)
6 |
PROTECTOR PROTECTOR MUD FRONT OEM PIAGGIO 50-125 FLY-621998 More informationQuantity required : 1 |
|||||||||
|
7 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
