Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

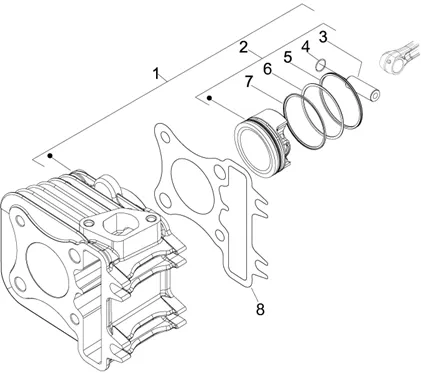

Moteur : 01.07 GROUPE CYLINDRE-PISTON-AXE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1135/Boulevard_100_4T_2010-2011_(EMEA)_01.07.png)
1 |
CYLINDER PISTON OEM PIAGGIO 100 SCARABEO 4T 2001 >-849055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/9/1/img/69591.jpg)
2 |
849056-GROUP PISTON 100CC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/5/img/70935.jpg)
3 |
SHAFT OF PISTON OEM PIAGGIO 50 4T ZIP, SPRINT, PRIMAVERA-969214 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/3/4/img/70934.jpg)
4 |
CLIPS/CIRCLIPS DE PISTON DIAM 13 (FORME EN C) OEM PIAGGIO COMMON A LA RANGE-969213 More informationQuantity required : 2 |
||||||
|
5 |
834714-PISTON RING More informationQuantity required : 1 |
||||||
|
6 |
834712-PISTON RING More informationQuantity required : 1 |
||||||
|
7 |
834713-PISTON RING More informationQuantity required : 1 |
||||||
|
8 |
969722-JUNTA 0, 5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/8/6/img/70986.jpg)
8 |
GASKET OF CYLINDER (0. 5) OEM PIAGGIO 100 SCARABEO 2001 > 2014-969714 More informationQuantity required : 1 |
