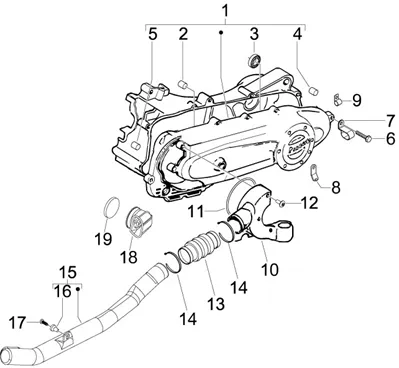

Vehicle Exploded View - DERBI BOULEVARD 100 Boulevard 100 4T 2010-2011 (EMEA) DERBI

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
Couvercle carter - Refoidissement carter
Search
878231 - COUVERCLE TRASMISS.

1
P2R reference P2R reference 70680
Maker reference Maker reference 878231

878231 - COUVERCLE TRASMISS.

More information

Quantity required : 1

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

2
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

3
P2R reference P2R reference 68524
Maker reference Maker reference 82521R

BEARING (28X8X9) CASING TRANSMISSION OEM PIAGGIO 50 TYPHOON, NRG, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82521R

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

4
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

5
P2R reference P2R reference 66167
Maker reference Maker reference 286209

BUSH SHAFT OF KICK OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, VESPA LX 2T/GILERA 50 STALKER, RUNNER-286209

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

6
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 7

271451 - COLLIER

7
P2R reference P2R reference 66098
Maker reference Maker reference 271451

271451-CLAMP

More information

Quantity required : 1

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

8
P2R reference P2R reference 69338
Maker reference Maker reference 844964

CLAMP OF FITTING KIT GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-844964

More information

Quantity required : 1

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

9
P2R reference P2R reference 66610
Maker reference Maker reference 482291

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

More information

Quantity required : 1

COVER DE COOLING CASING DE TRANSMISSION OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-9698046

10
P2R reference P2R reference 70994
Maker reference Maker reference 969804

COVER DE COOLING CASING DE TRANSMISSION OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-9698046

More information

Quantity required : 1

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

11
P2R reference P2R reference 66470
Maker reference Maker reference 435251

GASKET OF PROTECTOR DE CASING TRANSMISSION OEM PIAGGIO 50 LIBERTY, ZIP, FLY, PRIMAVERA, SPRINT-435251

More information

Quantity required : 1

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

12
P2R reference P2R reference 66471
Maker reference Maker reference 435295

SCREW CRUCIFORME (5X15) OEM PIAGGIO COMMON A LA RANGE-435295

More information

Quantity required : 3

623012 - MANCHON²

13
P2R reference P2R reference 67734
Maker reference Maker reference 623012

623012 - MANCHON²

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 3. 00X200MM OEM PIAGGIO COMMON A LA RANGE-709519

14
P2R reference P2R reference 68495
Maker reference Maker reference 709519

HOSE CLAMP NYLON TYPE RILSAN 3. 00X200MM OEM PIAGGIO COMMON A LA RANGE-709519

More information

Quantity required : 2

622267 - TUYAU HUILE

15
P2R reference P2R reference 67723
Maker reference Maker reference 622267

622267-HOSE OIL

More information

Quantity required : 1

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

16
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

17
P2R reference P2R reference 66035
Maker reference Maker reference 259349

SCREW AUTOTARAUDEUSE (4, 2X13) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-259349

More information

Quantity required : 1

SLEEVE RUBBER CASING DE TRANSMISSION OEM PIAGGIO 50 ZIP 2018 >-969899

18
P2R reference P2R reference 70999
Maker reference Maker reference 969899

SLEEVE RUBBER CASING DE TRANSMISSION OEM PIAGGIO 50 ZIP 2018 >-969899

More information

Quantity required : 1

ELEMENT MOUSSE AIR FILTER CASING TRANSMISSION OEM PIAGGIO 50 ZIP 2018 >-969921

19
P2R reference P2R reference 71001
Maker reference Maker reference 969921

ELEMENT MOUSSE AIR FILTER CASING TRANSMISSION OEM PIAGGIO 50 ZIP 2018 >-969921

More information

Quantity required : 1
