Vehicle Exploded View - APRILIA ATLANTIC 400 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

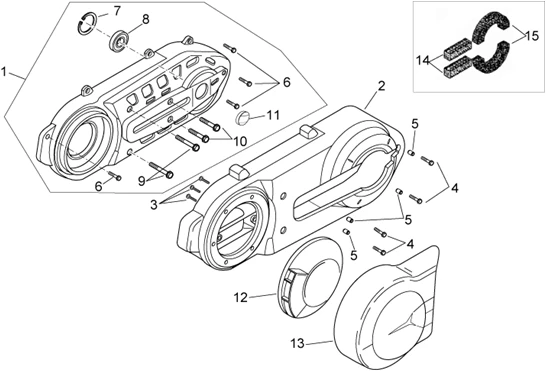

Moteur : 29.47 MOTEUR PLASTIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/553/Atlantic_400_Sprint_2005-2008_29.47.PNG)
1 |
Couvercle transmission |
||||||
|
2 |
873492 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
3 |
SCREW CRUCIFORME (4X30) TARAUD OEM PIAGGIO COMMON A LA RANGE-478533 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
4 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
5 |
SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120253 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/1/6/img/151716.jpg)
6 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 7 |
||||||
|
6 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-1A011120 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/9/img/68559.jpg)
7 |
CLIPS/CIRCLIPS (35. 7X43. 5X1. 75) OEM PIAGGIO COMMON A LA RANGE-825667 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/3/8/img/69138.jpg)
8 |
BEARING (17X40X12) COVER TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 350-400-500-840277 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/6/img/72716.jpg)
9 |
SCREW FLANGE TH (8X70) OEM PIAGGIO COMMON A LA RANGE-B016766 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/7/img/69077.jpg)
10 |
SCREW FLANGE TH (8X100) OEM PIAGGIO COMMON A LA RANGE-833664 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/4/img/69144.jpg)
11 |
COVER ROND DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-840439 More informationQuantity required : 1 |
||||||
|
12 |
AP8179159 - COPERCHIO ANTERIORE VARIATORE More informationQuantity required : 1 |
||||||
|
13 |
AP8179158-COVER RAFFREDD. VARIATORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/8/img/69058.jpg)
14 |
MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833320 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/5/9/img/69059.jpg)
15 |
MOUSSE INSONORISANTE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-833321 More informationQuantity required : 2 |
