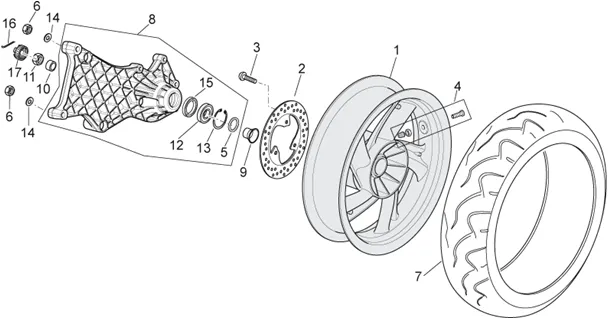

Chassis : 28.26 ROUE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/553/Atlantic_400_Sprint_2005-2008_28.26.PNG)
1 |
AP8108960 - ROUE ARRIERE NUE; More informationQuantity required : 1 |
||||||
|
2 |
AP8113800 - DISQUE FREIN ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
3 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8152279 More informationQuantity required : 5 |
||||||
|
4 |
AP8202168 - SOUPAPE TUBELESS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/3/img/45833.jpg)
5 |
OIL SEAL (28X35X4) WHEEL SPINDLE REAR OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO, 250-300 LEONARDO-AP8110086 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
6 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-AP8150277 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/6/9/img/69069.jpg)
6 |
NUT FLANGE (10X1, 25) OEM PIAGGIO COMMON A LA RANGE-833520 More informationQuantity required : 2 |
||||||
|
7 |
666284 - PNEU 140/60-14" MICHELIN CITY GRIP More informationQuantity required : 1 |
||||||
|
8 |
AP8146943 - SUPPORTO MARMITTA GRIGIO More informationQuantity required : 1 |
||||||
|
8 |
AP8154067 - SUPPORTO MARMITTA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/7/7/7/img/47777.jpg)
9 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 500 ATLANTIC 2001>2004, SCARABEO 2003>2006 -AP8125845 More informationQuantity required : 1 |
||||||
|
10 |
AP8125862 - ENTRETOISE ROUE ARRIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/3/5/img/67035.jpg)
11 |
NUT (M16) OEM PIAGGIO COMMON A TOUTE LA RANGE-563728 More informationQuantity required : 1 |
||||||
|
12 |
AP8152402 - ROULEMENT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/1/img/51001.jpg)
13 |
CLIPS/CIRCLIPS 47 OEM PIAGGIO COMMON A LA RANGE-AP8152401 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
14 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
14 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/6/6/6/img/50666.jpg)
15 |
COVER ANTI-POUSSIERE WHEEL SPINDLE REAR OEM PIAGGIO APRILIA 400-500 ATLANTIC, SCARABEO-AP8149465 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/5/img/65355.jpg)
16 |
GOUPILLE SECURITE NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-012789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/8/9/6/5/0/img/189650.jpg)
17 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
||||||
|
17 |
CAGE MOUNTING NUT DE REAR WHEEL OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER ET MAXI SCOOTER-1C004746 More informationQuantity required : 1 |
