Vehicle Exploded View - APRILIA ATLANTIC 400 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

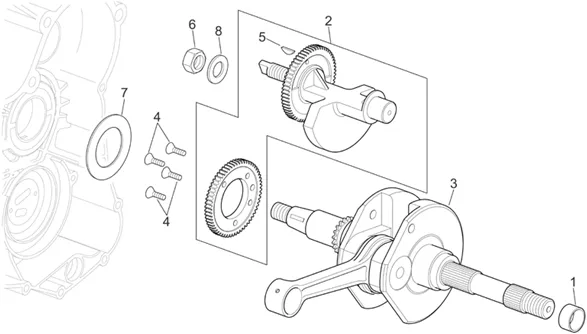

Moteur : 29.36 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/553/Atlantic_400_Sprint_2005-2008_29.36.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/6/6/img/69566.jpg)
1 |
SPACER EMBIELLAGE OEM PIAGGIO 500 MAXI SCOOTER COMMON A LA RANGE-848222 More informationQuantity required : 1 |
||||||
2 |
841456 - ROCHET SET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/4/img/70414.jpg)
3 |
CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, X-EVO, BEVERLY, 500 X9, MP3, BEVERLY/400-500 ATLANTIC, SCARABEO -8720925001- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/1/5/img/70415.jpg)
3 |
CRANKSHAFT "PIAGGIO GENUINE PART" 400 X8, 400 X-EVO, 400 BEVERLY, 500 X9, 500 MP3, 500 BEVERLY/APRILIA 400-500 ATLANTIC, 400 SCARABEO -8720925002 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/8/img/72728.jpg)
4 |
SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
5 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/0/3/img/65603.jpg)
6 |
NUT (M14X1. 5) (EX 0212146) OEM PIAGGIO COMMON A LA RANGE-0212146 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/8/6/img/68886.jpg)
7 |
WASHER VILLEBREQUIN OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500-830012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/3/9/img/69539.jpg)
8 |
WASHER AJUSTEMENT SPROCKET DE RENVOI OEM PIAGGIO 500-530 BEVERLY, MP3, X9, X10-847650 More informationQuantity required : 1 |
