Vehicle Exploded View - APRILIA ATLANTIC 400 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

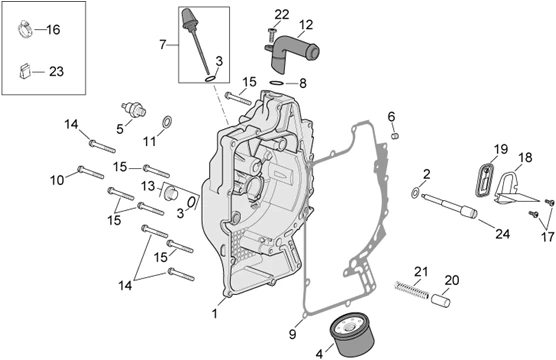

Moteur : 29.41 CARTER DE VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/553/Atlantic_400_Sprint_2005-2008_29.41.PNG)
1 |
WATER PUMP COMPLETE OEM PIAGGIO 500 BEVERLY, X9, 400 X8/GILERA 500 NEXUS/APRILIA 400, 500 SCARABEO, ATLANTIC-8725685 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/3/2/img/66132.jpg)
2 |
WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/7/img/68857.jpg)
2 |
WASHER SHAFT OF WATER PUMP OEM PIAGGIO APRILIA ATLANTIC 500 2001 > 2008/GILERA NEXUS 500 2006 > 2008/PIAGGIO X9 500 1998 > 2007-829557 More informationQuantity required : 1 |
||||||
|
3 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/9/img/68859.jpg)
4 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850-1A024459R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/3/3/img/67933.jpg)
5 |
SENSOR PRESSION D'HUILE OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER ET MOTO (PREVOIR ADAPTATEUR 99327 FOR 1200 GRISO, NORGE, STELVIO, SPORT)-1A024308R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
6 |
CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/4/8/img/70548.jpg)
7 |
CAP D'HUILE/JAUGE A OIL MANUELLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-874707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/7/img/65977.jpg)
8 |
O-RING (15X17X1. 5) OEM PIAGGIO COMMON A LA RANGE-237553 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/6/img/70446.jpg)
9 |
GASKET CASING OEM PIAGGIO 400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, NEXUS-872914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/2/img/66452.jpg)
10 |
434429-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
11 |
GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/1/img/68811.jpg)
12 |
CONDUITE DE PURGE OEM PIAGGIO 500 BEVERLY, MP3, X9, X10-829047 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/0/img/68810.jpg)
13 |
CAP CONTROLE DE CALLAGE ON CASING WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-8290405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
14 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 3 |
||||||
|
14 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
15 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
16 |
CLAMP MOUNTING WIRING OU HOSE OUVERT OEM PIAGGIO COMMON A LA RANGE-845978 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/4/0/img/66440.jpg)
17 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-433800 More informationQuantity required : 2 |
||||||
|
18 |
828930-SHEET METAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/9/5/img/68695.jpg)
19 |
CLAPET/VALVE OIL CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-82778R More informationQuantity required : 1 |
||||||
|
20 |
Oil pressure valve |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/4/8/img/68848.jpg)
21 |
SPRING OEM PIAGGIO COMMON A LA RANGE-829486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
22 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 1 |
||||||
|
23 |
641201-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/5/1/img/68751.jpg)
24 |
SHAFT WATER PUMP OEM PIAGGIO 400 X8 2004 >, BEVERLY 2006 >, 500 X9 2003 >, BEVERLY 2005 >/GILERA 500 NEXUS 2005 >/APRILIA 400 ATLANTIC, SCARABEO 2005 >, 500 ATLANTIC 2001 >, SCARABEO 2003 >-828394 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/1/img/70431.jpg)
24 |
SHAFT OF WATER PUMP OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO-872536 More informationQuantity required : 1 |
