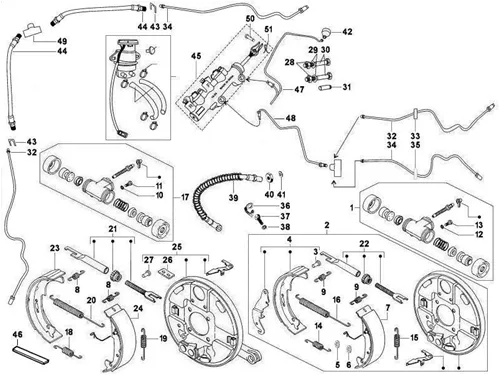

Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape MP 601 Classic 2006-2007 PIAGGIO VU

Transmisisons : 05.04 SYSTEME DE FREINAGE
Systeme de freinage
Search
632148 - CYLINDRE FREIN AR

1
P2R reference P2R reference 117186
Maker reference Maker reference 632148

632148 CYLINDER BRAKE REAR

More information

Quantity required : 2

602120 - DISQUE PATIN FREIN

2
P2R reference P2R reference 116903
Maker reference Maker reference 602120

602120 DISC PATIN BRAKE

More information

Quantity required : 1

602123 - DISQUE

2
P2R reference P2R reference 116905
Maker reference Maker reference 602123

602123 DISC

More information

Quantity required : 1

105498 - TAQUET

3
P2R reference P2R reference 113367
Maker reference Maker reference 105498

105498 TAQUET

More information

Quantity required : 1

662103 - MACHOIRE

4
P2R reference P2R reference 114678
Maker reference Maker reference 662103

662103 - MACHOIRE

More information

Quantity required : 1

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

5
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

6
P2R reference P2R reference 63839
Maker reference Maker reference 0069685

WASHER ELASTIC (8. 4X15X0. 5) OEM PIAGGIO COMMON A LA RANGE-006968

More information

Quantity required : 1

MACHOIRES OF BRAKE REAR LEFT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940005

7
P2R reference P2R reference 117627
Maker reference Maker reference 940005

MACHOIRES OF BRAKE REAR LEFT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940005

More information

Quantity required : 1

MACHOIRES OF BRAKE REAR RIGHT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940006

7
P2R reference P2R reference 117626
Maker reference Maker reference 940006

MACHOIRES OF BRAKE REAR RIGHT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940006

More information

Quantity required : 1

602497 - PINCE DE RETENUE MACHOIRES

8
P2R reference P2R reference 111147
Maker reference Maker reference 602497

602497 PINCE DE RETENUE MACHOIRES

More information

Quantity required : 2

602497 - PINCE DE RETENUE MACHOIRES

9
P2R reference P2R reference 111147
Maker reference Maker reference 602497

602497 PINCE DE RETENUE MACHOIRES

More information

Quantity required : 2

012536 - RONDELLE

10
P2R reference P2R reference 65347
Maker reference Maker reference 0125365

012536-WASHER

More information

Quantity required : 2

063440 - VIS

11
P2R reference P2R reference 109977
Maker reference Maker reference 0634405

063440 SCREW

More information

Quantity required : 2

012536 - RONDELLE

12
P2R reference P2R reference 65347
Maker reference Maker reference 0125365

012536-WASHER

More information

Quantity required : 2

063440 - VIS

13
P2R reference P2R reference 109977
Maker reference Maker reference 0634405

063440 SCREW

More information

Quantity required : 2

SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088

14
P2R reference P2R reference 110533
Maker reference Maker reference 116088

SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088

More information

Quantity required : 2

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

15
P2R reference P2R reference 111439
Maker reference Maker reference 178808

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

More information

Quantity required : 2

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

16
P2R reference P2R reference 111378
Maker reference Maker reference 245038

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

More information

Quantity required : 2

CYLINDER OF BRAKE FRONT THREE-WHEELER APE CALESSINO 2007 < 2012/CLASSIC 206 >-587616

17
P2R reference P2R reference 116303
Maker reference Maker reference 587616

CYLINDER OF BRAKE FRONT THREE-WHEELER APE CALESSINO 2007 < 2012/CLASSIC 206 >-587616

More information

Quantity required : 1

SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088

18
P2R reference P2R reference 110533
Maker reference Maker reference 116088

SPRING DE BRAKE SHOE SET OEM PIAGGIO THREE-WHEELER APE-116088

More information

Quantity required : 2

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

19
P2R reference P2R reference 111439
Maker reference Maker reference 178808

SPRING DE BRAKE SHOE SET L = 69 OEM PIAGGIO THREE-WHEELER APE-178808

More information

Quantity required : 1

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

20
P2R reference P2R reference 111378
Maker reference Maker reference 245038

SPRING DE BRAKE SHOE SET (112. 5) OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >, APE TM 703-245038

More information

Quantity required : 1

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

21
P2R reference P2R reference 116453
Maker reference Maker reference 644326

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

More information

Quantity required : 1

644327 REGLAGE AUT AR G

22
P2R reference P2R reference 116452
Maker reference Maker reference 644327

644327 REGLAGE AUT AR G

More information

Quantity required : 1

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

22
P2R reference P2R reference 116453
Maker reference Maker reference 644326

GROUP OF ADJUSTMENT OF SET OF BRAKE REAR LEFT OEM PIAGGIO TRIPOREUR APE 7M703-644326

More information

Quantity required : 1

662103 - MACHOIRE

23
P2R reference P2R reference 114678
Maker reference Maker reference 662103

662103 - MACHOIRE

More information

Quantity required : 1

MACHOIRES OF BRAKE FRONT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940004

24
P2R reference P2R reference 151190
Maker reference Maker reference 940004

MACHOIRES OF BRAKE FRONT OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 >-940004

More information

Quantity required : 1

645290 - SUPPORT POUR DISC PORTE-CHAUSSURES

25
P2R reference P2R reference 120599
Maker reference Maker reference 645290

645290 - SUPPORT POUR DISC PORTE-CHAUSSURES

More information

Quantity required : 1

075765 - PLAQUETTE

26
P2R reference P2R reference 110274
Maker reference Maker reference 0757655

075765 - PLAQUETTE

More information

Quantity required : 1

105498 - TAQUET

27
P2R reference P2R reference 113367
Maker reference Maker reference 105498

105498 TAQUET

More information

Quantity required : 1

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

28
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 2

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

29
P2R reference P2R reference 63837
Maker reference Maker reference 0069655

WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965

More information

Quantity required : 2

SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058

30
P2R reference P2R reference 65634
Maker reference Maker reference 0310585

SCREW TH (5X16) OEM PIAGGIO COMMON A LA RANGE-031058

More information

Quantity required : 2

ENTRETOISE

31
P2R reference P2R reference
Maker reference Maker reference 568146

ENTRETOISE

587620 - TUYAU DE FREIN ROUE ARRIERE GAUCHE

32
P2R reference P2R reference 113738
Maker reference Maker reference 587620

587620 - TUYAU DE FREIN ROUE ARRIERE GAUCHE

More information

Quantity required : 1

177936 - TUBE FREIN AR

33
P2R reference P2R reference 117457
Maker reference Maker reference 177936

177936 TUBE BRAKE REAR

More information

Quantity required : 1

587622 - TUYAU DE FREIN ROUE ARRIERE DROITE

34
P2R reference P2R reference 113747
Maker reference Maker reference 587622

587622 - TUYAU DE FREIN ROUE ARRIERE DROITE

More information

Quantity required : 1

127928 - PLAQUETTE

36
P2R reference P2R reference 110930
Maker reference Maker reference 127928

127928 PLATE

More information

Quantity required : 1

587829 - RACCORD

37
P2R reference P2R reference 110835
Maker reference Maker reference 587829

587829 FITTING

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

38
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 1

587624 - TUYAU

39
P2R reference P2R reference 117741
Maker reference Maker reference 587624
Replaced by référence Replaced by référence 176472

587624 - TUYAU

More information

Quantity required : 1

021216 - ECROU S02121600

40
P2R reference P2R reference 111210
Maker reference Maker reference 0212165

021216 NUT S02121600

More information

Quantity required : 1

WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197

41
P2R reference P2R reference 65654
Maker reference Maker reference 0481975

WASHER PLATE (16. 2X24X1. 4) OEM PIAGGIO COMMON A LA RANGE-048197

More information

Quantity required : 1

138237 - CAPUCHON

42
P2R reference P2R reference 109861
Maker reference Maker reference 138237

138237 CAPUCHON

More information

Quantity required : 1

136916 - PLAQUE

43
P2R reference P2R reference 65734
Maker reference Maker reference 136916

136916-PLATE

More information

Quantity required : 1

587621 - TUYAU

44
P2R reference P2R reference 116017
Maker reference Maker reference 587621

587621 - TUYAU

More information

Quantity required : 2

652338 - POMPE FREIN

45
P2R reference P2R reference 122478
Maker reference Maker reference 652338

652338 PUMP BRAKE

More information

Quantity required : 1

157012 - SUPPORT

46
P2R reference P2R reference 112915
Maker reference Maker reference 157012

157012 - SUPPORT

More information

Quantity required : 1

645175 - TUYAU

47
P2R reference P2R reference 115138
Maker reference Maker reference 645175

645175 - TUYAU

More information

Quantity required : 1

645176 - TUYAU

48
P2R reference P2R reference 113497
Maker reference Maker reference 645176

645176 HOSE

More information

Quantity required : 1

632698 - CONNECTEUR

49
P2R reference P2R reference 111548
Maker reference Maker reference 632698

632698 - CONNECTEUR

More information

Quantity required : 1

POULIE

50
P2R reference P2R reference
Maker reference Maker reference 604589

POULIE

567920 - GOUPILLE

51
P2R reference P2R reference 109820
Maker reference Maker reference 567920

567920 GOUPILLE

More information

Quantity required : 1
