Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape MP 601 Classic 2006-2007 PIAGGIO VU

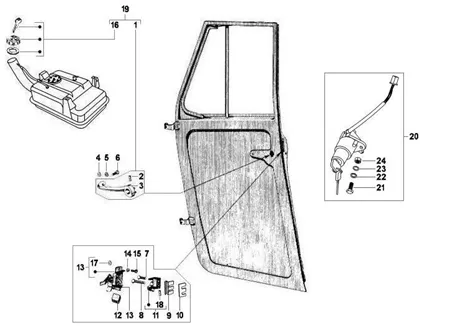

Parties plastiques-carrosseries : 02.46 SERRURES
Serrures
Search
Poignée

1
P2R reference P2R reference
Maker reference Maker reference 569115

Poignée

Poignée

1
P2R reference P2R reference
Maker reference Maker reference 569116

Poignée

008814 - GOUPILLE

2
P2R reference P2R reference 109795
Maker reference Maker reference 0088145

008814 GOUPILLE

More information

Quantity required : 1

837147 - SET POIGNEE

3
P2R reference P2R reference 117832
Maker reference Maker reference 837147

837147 SET GRIP

More information

Quantity required : 1

WASHER PLATE (5X19X1. 5) OEM PIAGGIO COMMON A LA RANGE-006018

4
P2R reference P2R reference 63800
Maker reference Maker reference 0060185

WASHER PLATE (5X19X1. 5) OEM PIAGGIO COMMON A LA RANGE-006018

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 0125465

000702 - VIS S00070200

6
P2R reference P2R reference 63750
Maker reference Maker reference 0007025

000702-SCREW S00070200

More information

Quantity required : 3

569156 - VIS

7
P2R reference P2R reference 110763
Maker reference Maker reference 569156

569156 SCREW

More information

Quantity required : 1

569157 - VIS

8
P2R reference P2R reference 110164
Maker reference Maker reference 569157

569157 SCREW

More information

Quantity required : 1

PLATE DE PORTIERE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-140603

9
P2R reference P2R reference 111244
Maker reference Maker reference 140603

PLATE DE PORTIERE OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-140603

More information

Quantity required : 1

193724 - PLAQUETTE EPAISSEUR

10
P2R reference P2R reference 111188
Maker reference Maker reference 193724

193724 PLATE EPAISSEUR

More information

Quantity required : 1

BLOC LOCK DE DOOR RIGHT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182662

11
P2R reference P2R reference 113524
Maker reference Maker reference 182662

BLOC LOCK DE DOOR RIGHT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182662

More information

Quantity required : 1

BLOC DE LOCK DOOR LEFT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182663

11
P2R reference P2R reference 116284
Maker reference Maker reference 182663

BLOC DE LOCK DOOR LEFT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182663

More information

Quantity required : 1

BUTTON EN RUBBER FOR GRIP OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 > 2017-182655

12
P2R reference P2R reference 115455
Maker reference Maker reference 182655

BUTTON EN RUBBER FOR GRIP OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 > 2017-182655

More information

Quantity required : 1

LOCK DE DOOR RIGHT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182660R

13
P2R reference P2R reference 142808
Maker reference Maker reference 182660R

LOCK DE DOOR RIGHT OEM PIAGGIO THREE-WHEELER APE CLASSIC 2006 >-182660R

More information

Quantity required : 1

182661R - SERRURE

13
P2R reference P2R reference 142807
Maker reference Maker reference 182661R

182661R LOCK

More information

Quantity required : 1

14
P2R reference P2R reference
Maker reference Maker reference 0125465

000702 - VIS S00070200

15
P2R reference P2R reference 63750
Maker reference Maker reference 0007025

000702-SCREW S00070200

More information

Quantity required : 3

FUEL CAP "PIAGGIO GENUINE PART" APE -B024170-

16
P2R reference P2R reference 142816
Maker reference Maker reference B024170

CAP DE TANK A CLE OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012/CLASSIC 2006 >-B024170

More information

Quantity required : 1

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

17
P2R reference P2R reference 63778
Maker reference Maker reference 0030575

WASHER PLATE (7X12. 7. 1) OEM PIAGGIO COMMON A LA RANGE-003057

More information

Quantity required : 1

652477 - ENS. SERRURES

19
P2R reference P2R reference 118889
Maker reference Maker reference 652477

652477 - ENS. SERRURES

More information

Quantity required : 1

IGNITION SWITCH/LOCK OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-652046

20
P2R reference P2R reference 119478
Maker reference Maker reference 652046

IGNITION SWITCH/LOCK OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-652046

More information

Quantity required : 1

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

21
P2R reference P2R reference 65640
Maker reference Maker reference 0310895

SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089

More information

Quantity required : 2

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

22
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 2

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

23
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 2

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

24
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 2
