Vehicle Exploded View - PIAGGIO VU APE CLASSIC 400 Ape MP 601 Classic 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

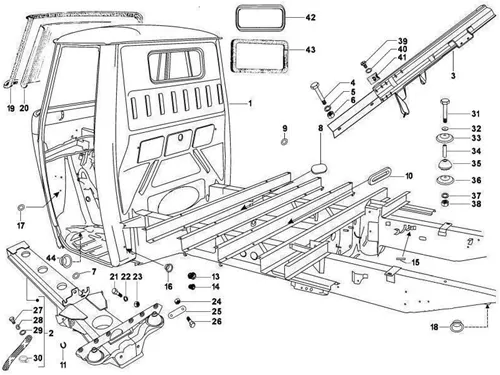

Parties plastiques-carrosseries : 02.01 CHASSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_02.01_20251008083359.PNG)
1 |
652035 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
632322 - SUPP MOTEUR More informationQuantity required : 1 |
||||||
|
3 |
645014 SUPP ENGINE More informationQuantity required : 1 |
||||||
|
4 |
568260 SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
5 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
6 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/7/img/65787.jpg)
7 |
GUIDE CABLE DE HOSE COOLING OEM PIAGGIO COMMON A LA RANGE-178610 More informationQuantity required : 3 |
||||||
|
8 |
190255 CAP More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/0/img/65720.jpg)
9 |
CAP/CAPSULE DE MIRROR OEM PIAGGIO COMMON A LA RANGE-125998 More informationQuantity required : 5 |
||||||
|
10 |
567921 GUIDE CABLES More informationQuantity required : 1 |
||||||
|
11 |
568140 GUIDE CABLES More informationQuantity required : 1 |
||||||
|
13 |
119241 CAP More informationQuantity required : 4 |
||||||
|
14 |
128009-CAPSULE More informationQuantity required : 1 |
||||||
|
15 |
RENIFLARD |
||||||
|
16 |
190517 CAP More informationQuantity required : 2 |
||||||
|
17 |
568154 GUIDE CABLES More informationQuantity required : 2 |
||||||
|
18 |
568288 CAP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/9/3/8/6/img/119386.jpg)
19 |
GASKET OF WINDSCREEN OEM PIAGGIO THREE-WHEELER CALESSINO 2007 >, CLASSIC 2006 >, P501, P601, P400 1978 > 1983-109012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/8/1/6/img/122816.jpg)
20 |
WINDSCREEN OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 >, CLASSIC 2006 >-587963 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
21 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 6 |
||||||
|
22 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 6 |
||||||
|
23 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/5/img/65375.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-015235 More informationQuantity required : 2 |
||||||
|
25 |
632299 PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
26 |
SCREW TH (10X35) OEM PIAGGIO COMMON A LA RANGE-031159 More informationQuantity required : 2 |
||||||
|
27 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
28 |
WASHER EVENTAIL (8. 3X14) OEM PIAGGIO COMMON A LA RANGE-012540 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
29 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 1 |
||||||
|
31 |
VIS |
||||||
|
32 |
RONDELLE |
||||||
|
33 |
160631 SPACER T1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/9/6/1/img/114961.jpg)
34 |
SPACER T1 OEM PIAGGIO THREE-WHEELER APE-219299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/7/img/115177.jpg)
35 |
RUBBER MOUNT/BRACKET ENGINE OEM PIAGGIO THREE-WHEELER APE CLASSIC, CALESSINO, TM 703 DIESEL-265091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/9/2/img/111992.jpg)
36 |
SPACER CARROSSERIE OEM PIAGGIO THREE-WHEELER APE-218758 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
37 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/5/img/65465.jpg)
38 |
NUT (M10) OEM PIAGGIO COMMON A LA RANGE-020110 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/8/img/66058.jpg)
39 |
SCREW AUTOTARAUDEUSE (4X16) OEM PIAGGIO COMMON A LA RANGE-267115 More informationQuantity required : 3 |
||||||
|
40 |
241656 - RONDELLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
41 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 2 |
||||||
|
42 |
107952 - TRANSPARENT More informationQuantity required : 1 |
||||||
|
43 |
125707 - JOINT More informationQuantity required : 1 |
||||||
|
44 |
PASSE CABLES |
||||||
|
46 |
Entretoise charnière porte |
