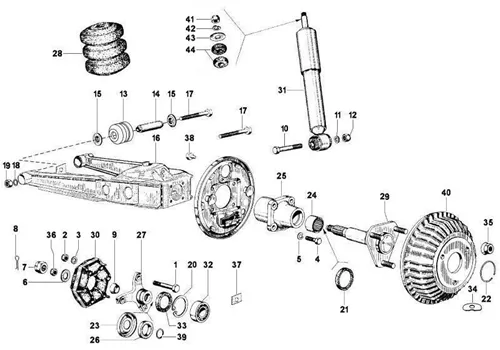

Roues : 04.10 SUSPENSION ARRIERE - AMORTISSEUR/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/326/Ape_MP_601_Classic_2006-2007_04.10_20251008083544.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/4/img/65384.jpg)
1 |
SCREW TH (10X65) OEM PIAGGIO COMMON A LA RANGE-015594 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
2 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/3/7/img/110037.jpg)
3 |
WASHER PLATE (10. 2X20X1) OEM PIAGGIO COMMON A LA RANGE-237246 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/2/img/65652.jpg)
4 |
SCREW TH (10X35) OEM PIAGGIO COMMON A LA RANGE-031159 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/9/img/65419.jpg)
5 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/1/img/63781.jpg)
6 |
WASHER RUBBER MOUNT DE TRANSMISSION (30X19X3) OEM PIAGGIO THREE-WHEELER APE-003068 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/1/img/111461.jpg)
7 |
CAPUCHON NUT HUB OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-177559 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/3/2/img/110932.jpg)
8 |
GOUPILLE (4X28) OEM PIAGGIO COMMON A LA RANGE-012790 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/4/2/img/115342.jpg)
9 |
CONE DE FLASQUE HUB REAR OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-128633 More informationQuantity required : 2 |
||||||
10 |
267068 - VITE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/2/img/66172.JPG)
11 |
WASHER PLATE (20X10. 2X2)-286328 More informationQuantity required : 2 |
||||||
|
12 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 2 |
||||||
|
13 |
226596 CIRCLIPS More informationQuantity required : 1 |
||||||
|
14 |
267065 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
267064 - RONDELLE More informationQuantity required : 2 |
||||||
|
16 |
645224 TRIANGLE LEFT More informationQuantity required : 1 |
||||||
|
16 |
645223 TRIANGLE RIGHT More informationQuantity required : 1 |
||||||
|
17 |
643741 SCREW More informationQuantity required : 2 |
||||||
|
18 |
WASHER PLATE (20X10. 2X2)-286328 More informationQuantity required : 2 |
||||||
|
19 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 2 |
||||||
|
20 |
006650 CIRCLIPS S00665000 More informationQuantity required : 2 |
||||||
|
21 |
BUSH ETANCHE BEARING WHEEL FRONT (35X47X7) OEM PIAGGIO CARGO-020359 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/4/2/img/111242.jpg)
22 |
CLIPS/CIRCLIPS OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-107870 More informationQuantity required : 2 |
||||||
|
23 |
109892 COVER POUSSIERE More informationQuantity required : 2 |
||||||
|
24 |
661282 BEARING À AGUILLES More informationQuantity required : 2 |
||||||
|
25 |
6C000662 HUB More informationQuantity required : 2 |
||||||
|
26 |
1370513 BUSH More informationQuantity required : 2 |
||||||
|
27 |
587617 HUB * More informationQuantity required : 1 |
||||||
|
28 |
605003 - TAMPON More informationQuantity required : 2 |
||||||
|
29 |
643547 - AXE ROUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/8/9/img/117989.jpg)
30 |
RUBBER MOUNT DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2007 > 2012, CLASSIC 2006 > 2017-643576 More informationQuantity required : 2 |
||||||
|
31 |
645131 - AMORTISSEUR More informationQuantity required : 2 |
||||||
|
32 |
BEARING (22X50X14) DE HUB REAR OEM PIAGGIO THREE-WHEELER APE-56576R More informationQuantity required : 2 |
||||||
|
33 |
196302 BUSH ETANCHEITEE More informationQuantity required : 2 |
||||||
|
34 |
643895 SIEGE More informationQuantity required : 9 |
||||||
|
35 |
660931 NUT WHEEL (M 12 X 1. 5) More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/3/1/img/112131.jpg)
36 |
NUT (18) MOUNTING RUBBER MOUNT DE TRANSMISSION OEM PIAGGIO THREE-WHEELER APE-021118 More informationQuantity required : 2 |
||||||
|
37 |
115608 BUFFER More informationQuantity required : 1 |
||||||
|
38 |
178838 CAP More informationQuantity required : 2 |
||||||
|
39 |
632979 CIRCLIPS More informationQuantity required : 1 |
||||||
|
40 |
152580 TAMBOUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/5/9/9/img/65599.jpg)
41 |
NUT (10X1. 25) OEM PIAGGIO COMMON A LA RANGE-021110 More informationQuantity required : 2 |
||||||
|
42 |
WASHER GROWER (10. 6X17. 6X5) OEM PIAGGIO COMMON A LA RANGE-016410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/3/2/img/111132.jpg)
43 |
WASHER PLATE (10. 5X38X3) OEM PIAGGIO COMMON A LA RANGE-567427 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/8/5/img/111385.jpg)
44 |
BUFFER SHOCK ABSORBER OEM PIAGGIO THREE-WHEELER APE COMMON A LA RANGE-074414 More informationQuantity required : 4 |
