NEWFREN In Stock

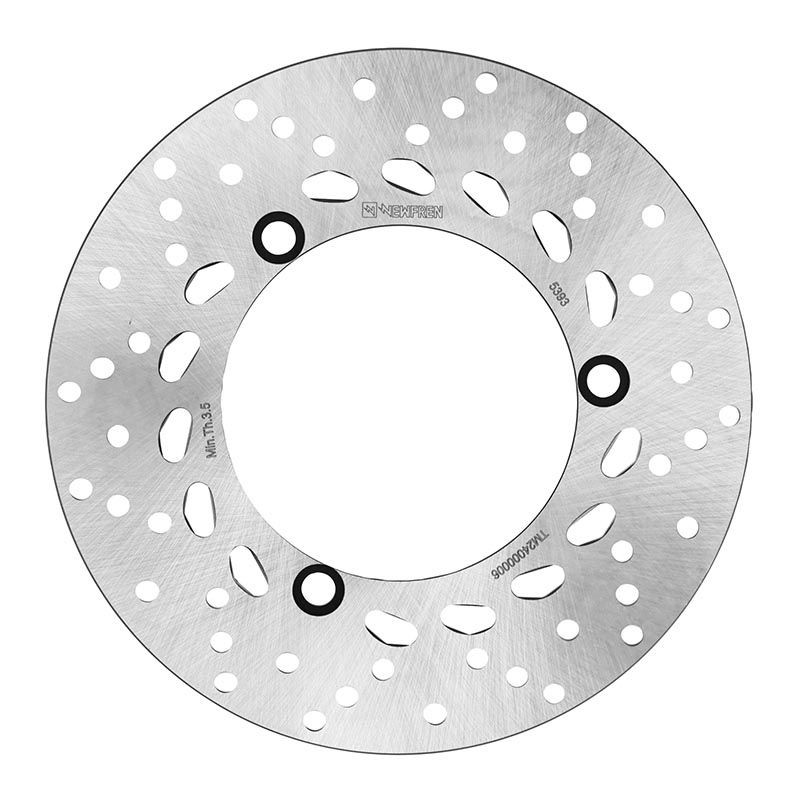

DISQUE DE FREIN ADAPTABLE YAMAHA 125 XMAX 2014>2017, 250 XMAX 2014>2016 AR (EXT 240 mm - INT 115mm - 3 TROUS) (DF5393A) -NEWFREN- 8025832433859
Reference : 219723
Code Ean : 8025832433859
DISQUE DE FREIN ADAPTABLE YAMAHA 125 N-MAX 2015>2023 AV (EXT 230 mm - INT 115mm - 3 TROUS) (DF5393A) -NEWFREN- 8025832433859
More info
DISQUE DE FREIN ADAPTABLE YAMAHA 125 N-MAX 2015>2023 AV (EXT 230 mm - INT 115mm - 3 TROUS) (DF5393A) -NEWFREN- 8025832433859
Related to
| Manufacturer | Model | Cylinder | From | To | Miscellaneous |
|---|---|---|---|---|---|
| YAMAHA | N-MAX | 125 | 2015 | 2023 | AVANT |
| YAMAHA | N-MAX | 150 | 2017 | 2019 | AVANT |
| YAMAHA | N-MAX | 155 | 2020 | 2021 | AVANT |
Data sheet
| Product Name | DISQUE DE FREIN |
| Product Usage | MAXISCOOTER |
| Type | FIXE |
| Product model | DF5393A |

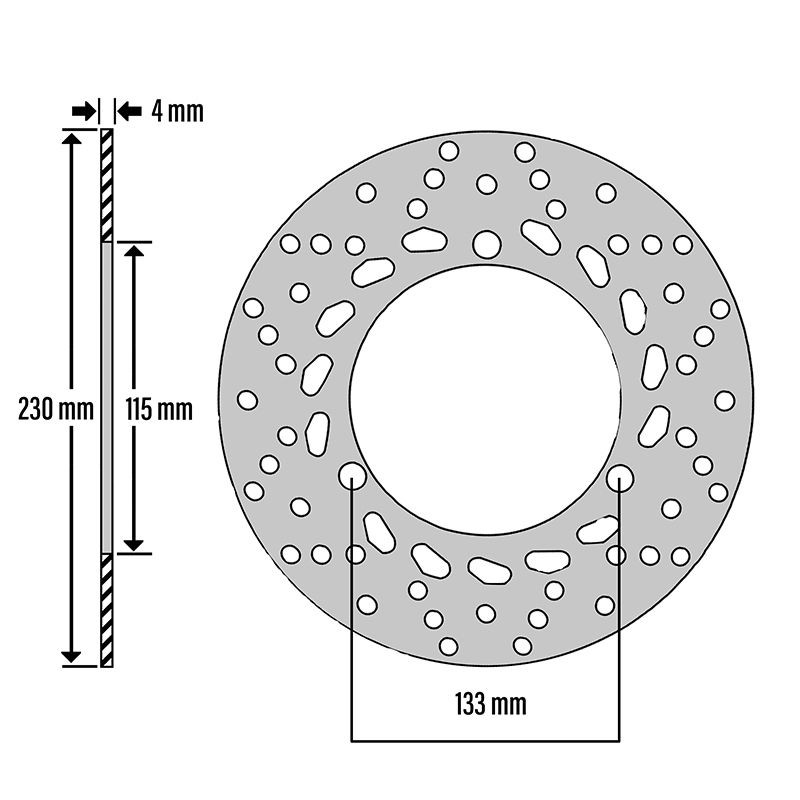

| Thickness | 4 MM |
| Extern Diameter | 230 MM |
| Intern Diameter | 115 MM |
| Entraxe | ENTRE LES TROUS DE FIXATION 133 MM |
| Position | AVANT |
| Holes Number | 3 |
| Product Sub-familly | DISQUES DE FREIN |
| Product family | CYCLES (MOTORISE) |
| Référence Fournisseur | DF5393A |
| Packaging | (VENDU À L'UNITÉ) |
