Eclatés de véhicule - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

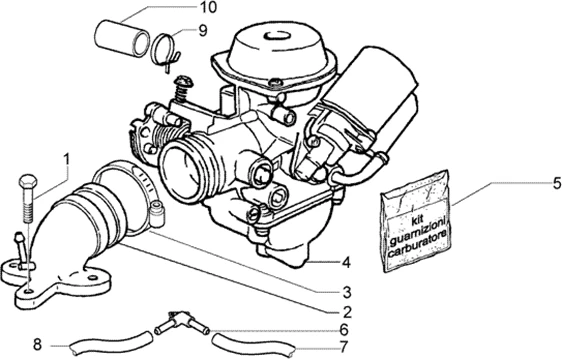

Moteur : T18 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T18.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
1 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352 Plus d'informationsQuantité requise : 3 |
||||||
|
1 |
VIS TORX (6X25) ORIGINE PIAGGIO COMMUN A LA GAMME -1A000352 Plus d'informationsQuantité requise : 3 |
||||||
1 |
826822 - CIRCLIPS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/2/img/72712.jpg)
2 |
RACCORD ADMISSION (DEUX RACCORDS LAITON) ORIGINE PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO -B016579 Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
826821 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
COLLIER SERRAGE TUBE 32-50 ORIGINE PIAGGIO COMMUN A LA GAMME -1A000833 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/7/img/68627.jpg)
3 |
826843 - RONDELLE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
CM128214 - CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
4 |
826839 - RESSORT VIS DE RICHESSE ORIGINE Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
494921 - JEU DE JOINTS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/5/img/73095.jpg)
5 |
VIS DE RICHESSE ORIGINE PIAGGIO COMMUN A LA GAMME 125 CC 1998>2004 -CM106402 Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
CM129802 - DISPOSITIF WALBRO (ABOLI SANS REMPLACEMENT) Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/5/0/img/66450.jpg)
7 |
TUYAU RECHAUFFAGE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -434381 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
826825 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/1/6/img/68716.jpg)
8 |
DURITE/TUBE THERMOSTAT ORIGINE PIAGGIO 125 BEVERLY, X8, X9 -827921 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/0/img/73150.jpg)
8 |
BOISSEAU POUR CARBU WALBRO ORIGINE PIAGGIO 125 X9, BEVERLY, X8, VESPA GRANTURIMO 1998>2005/GILERA 125 DNA, RUNNER 1998>2005/APRILIA 125-250 ATLANTIC, SCARABEO, 125 SPORT-CITY -CM129701 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
9 |
COLLIER (15MM) SERRAGE DURITE ORIGINE PIAGGIO COMMUN A LA GAMME -CM002916 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
826826 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
10 |
CAPUCHON/PRISE D'AIR DE CARBURATEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -841695 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
10 |
FLOTTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125 -826812 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
SET MANCHON CARBURATEUR |
||||||
|
12 |
826770 - VIS Plus d'informationsQuantité requise : 5 |
||||||
|
13 |
CUVETTE |
||||||
|
14 |
Goupille |
||||||
|
15 |
826786 - POINTEAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
826866 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
CM140104 - GICLEUR RALENTI 38 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/5/img/73155.jpg)
18 |
CM129906 - GIGLER MAXI 100 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
Cache |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/4/img/68674.jpg)
21 |
COUVERCLE VOLET DE GAZ ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC 1998>2005 -827467- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
22 |
VIS CRUCIFORME (4X10) COUVERCLE DE BOISSEAU ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125 CC -826780 Plus d'informationsQuantité requise : 5 |
||||||
|
23 |
826824 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
CM140203 - POINTEAU CON. Plus d'informationsQuantité requise : 1 |
||||||
|
25 |
Ressort |
||||||
|
26 |
Rondelle d'ar |
||||||
|
27 |
RESSORT |
