Eclatés de véhicule - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

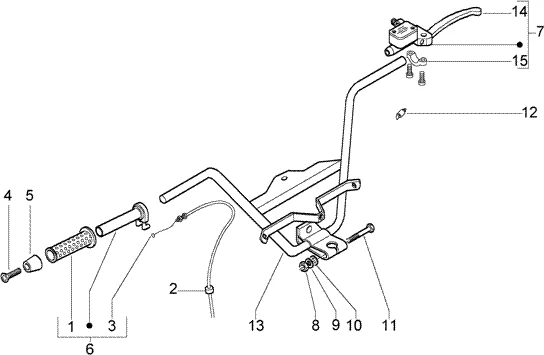

Guidon : T39 GUIDON-POMPE DU FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
1 |
REVETEMENT DE POIGNEE GAUCHE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -271452 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
1 |
REVETEMENT DE POIGNEE DROITE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -271453 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/7/img/65967.jpg)
2 |
CLIPS RESSORT (D17) ORIGINE PIAGGIO COMMUN A LA GAMME -231590 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/3/8/img/95638.jpg)
3 |
CABLE/COMMANDE/TRANSMISSION DE GAZ ORIGINE PIAGGIO 125 X7 2008>, X8 2004>2006, X-EVO 2007 -CM073308 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/3/6/5/img/158365.jpg)
4 |
VIS TORX TETE FRAISEE (6X55) EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -1B006376 Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
VIS TORX TETE FRAISEE (6X55) EMBOUT DE GUIDON ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -1B006376 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/3/2/7/img/77327.jpg)
5 |
EMBOUT DE GUIDON CHROME ORIGINE PIAGGIO 125-250 X9, X8, X7, X-EVO, BEVERLY/GILERA 50-125 RUNNER -271433 Plus d'informationsQuantité requise : 2 |
||||||
5 |
583697 - CONTRE POIDS X9/BEV125/200/500+GT Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/4/5/5/img/95455.jpg)
6 |
POIGNEE DE GAZ ORIGINE PIAGGIO 125 X-EVO 2007>, X8 2004>2006, X7 2008> -CM060976 Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
CM075405 - POMPE FREIN Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
CM075407 - MAITRE CYLINDRE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
POMPE FREIN |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
8 |
ECROU (M10) ORIGINE PIAGGIO COMMUN A LA GAMME -015330 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
9 |
RONDELLE CRANTEE (10.3X17X2) ORIGINE PIAGGIO COMMUN A LA GAMME -012543 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
10 |
RONDELLE PLATE (10.3X22X2.5) ORIGINE PIAGGIO COMMUN A LA GAMME -178790 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
11 |
VIS BTR (10X65) ORIGINE PIAGGIO COMMUN A LA GAMME -655554 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
12 |
CONTACTEUR FEU STOP MAXISCOOTER ORIGINE PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/5/1/3/img/82513.jpg)
13 |
GUIDON ORIGINE PIAGGIO 125-250-400 X-EVO, X8 -5994065- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
14 |
LEVIER FREIN MAXISCOOTER ORIGINE PIAGGIO 125-250-400-500 MP3, BEVERLY, X8 2004>2006, X-EVO 2007>/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO GAUCHE/DROIT (HENG-TONG) -600475 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/7/img/67437.jpg)
15 |
DEMI COLLIER POIGNEE ORIGINE PIAGGIO COMMUN A LA GAMME -600478 Plus d'informationsQuantité requise : 2 |
