Eclatés de véhicule - PIAGGIO X8 200 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

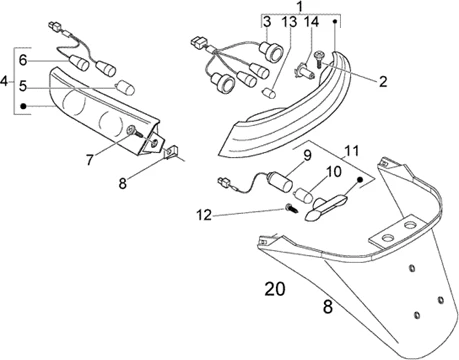

Connexions électriques : T43 FEUX ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/421/X8_200_1998-2005_T43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/4/6/img/82046.jpg)
1 |
FEU AR MAXISCOOTER ORIGINE PIAGGIO 125-250-400 X8 2004>2006, 125-250-400 X-EVO 2007> (LIVRE SANS AMPOULES) -584210 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
2 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 2 |
||||||
3 |
584982 - FAISCEAU CABLES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/4/5/img/82045.jpg)
4 |
CLIGNOTANT ARRIERE GAUCHE ORIGINE PIAGGIO 125 250 400 X8 2004>2006, X-EVO 125 >2007 (LIVRE SANS AMPOULES) -584209 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/5/2/img/82052.jpg)
4 |
CLIGNOTANT ARRIERE DROIT ORIGINE PIAGGIO 125 250 400 X8 2004>2006, 125 X-EVO >2007 (LIVRE SANS AMPOULES) -584268 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
5 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
584840 - FAISCEAU CABLES INDICATEUR DIR. Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
7 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
584841 - PORTE AMPOULE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/0/0/2/img/86002.jpg)
11 |
FEU ECLAIRAGE DE PLAQUE DE POLICE ORIGINE PIAGGIO 125-250-400 X-EVO, X8, 125-250-300 MP3 -640629 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/7/4/img/66074.jpg)
12 |
VIS AUTOTARAUDEUSE (4X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -268596 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
13 |
AMPOULE/LAMPE 12V 3W W2,1X9,5D ORIGINE PIAGGIO COMMUN A LA GAMME -294131 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
14 |
AMPOULE/LAMPE 12V 10W BA15S/R10 ORIGINE PIAGGIO COMMUN A LA GAMME -181746 Plus d'informationsQuantité requise : 1 |
