Vehicle Exploded View - GILERA ZULU 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

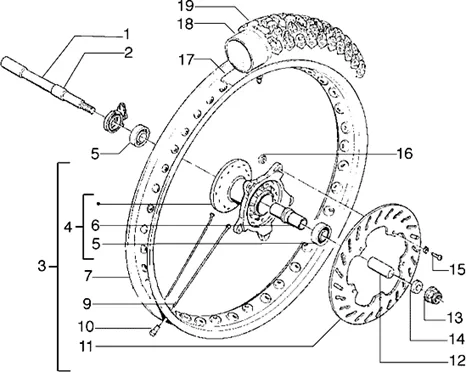

Roues : T33 ROUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/650/Zulu_1998-2005_T33.PNG)
1 |
AXE ROUE |
||||||
|
2 |
810544 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
3 |
ROUE avtCOMPL |
||||||
|
4 |
TAMBOUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/0/img/66110.jpg)
5 |
BEARING (12X32X10) DE FRONT WHEEL OEM PIAGGIO 50 ZIP/GILERA 50 HAK, GSM, ZULU-272155 More informationQuantity required : 2 |
||||||
|
6 |
Entretoise |
||||||
|
7 |
JANTE C33 AVANT 1,60 X 21 NOIR |
||||||
|
9 |
RAYON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/4/2/6/img/92426.jpg)
10 |
NUT DE SPOKE OEM PIAGGIO 50 GSM, ZULU GILERA 2005 <-814172 More informationQuantity required : 36 |
||||||
|
11 |
809471-BRAKE DISC AV More informationQuantity required : 1 |
||||||
|
12 |
809514 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
13 |
ECROU |
||||||
|
14 |
810544 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
15 |
VIS |
||||||
|
16 |
810511-NUT More informationQuantity required : 6 |
||||||
|
17 |
PROTECTION ROUE |
||||||
|
18 |
809493 - CHAMBRE AIR More informationQuantity required : 1 |
||||||
|
19 |
PNEU 90/90-21 54S MICHELIN T63 |
