Vehicle Exploded View - GILERA ZULU 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

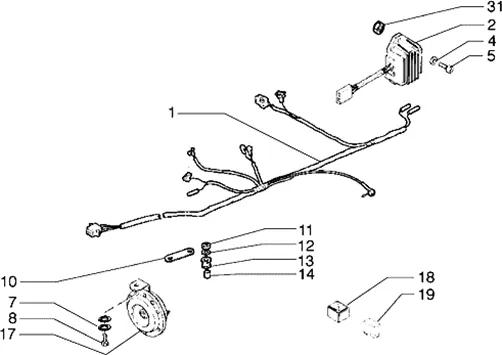

Electriques : T36 DISPOSITIFS ELECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/650/Zulu_1998-2005_T36.PNG)
1 |
groupe de cable |
||||||
|
2 |
2943475 - REGULATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
4 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/3/img/65643.jpg)
5 |
SCREW TH (6X25) OEM PIAGGIO COMMON A LA RANGE-031092 More informationQuantity required : 1 |
||||||
|
6 |
2943475 - REGULATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
7 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/7/img/65637.jpg)
8 |
SCREW TH (6X12) OEM PIAGGIO COMMON A LA RANGE-031086 More informationQuantity required : 1 |
||||||
|
10 |
SUPPORT KLAXON |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
11 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
12 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 1 |
||||||
|
13 |
TAMPON |
||||||
|
14 |
ENTRETOISE |
||||||
|
17 |
293749 - KLAXON More informationQuantity required : 1 |
||||||
|
18 |
942577-BRACKET RELAIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/6/0/8/8/img/206088.jpg)
19 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
||||||
|
19 |
CENTRE CLIGNOTANTE 2 BROCHES OEM PIAGGIO COMMON A LA RANGE-1D004175R More informationQuantity required : 1 |
||||||
|
27 |
030052-SCREW S03005200 More informationQuantity required : 1 |
||||||
|
31 |
810511-NUT More informationQuantity required : 2 |
