Vehicle Exploded View - GILERA ZULU 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

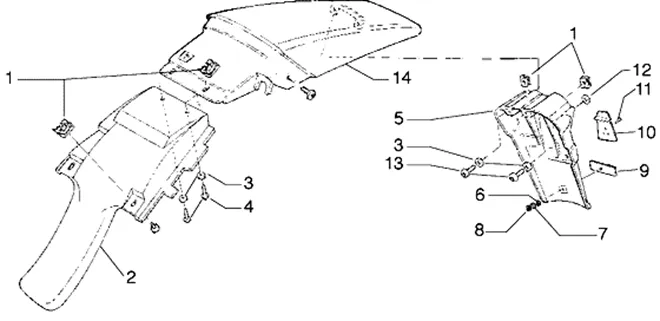

Châssis : T22 GARDEBOUE AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/650/Zulu_1998-2005_T22.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
1 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
2 |
PROTECT INF DE SELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/6/img/65356.jpg)
3 |
WASHER 6, 2X20X1 OEM PIAGGIO COMMON A TOUTE LA RANGE-013092 More informationQuantity required : 8 |
||||||
|
4 |
809903 - VIS More informationQuantity required : 4 |
||||||
|
5 |
8131335 - PROTECTION AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
6 |
WASHER PLATE (5. 3X14X1) OEM PIAGGIO COMMON A LA RANGE-097733 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
7 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
8 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
||||||
|
9 |
CATADIOPTRE |
||||||
|
10 |
DOOR PLATE IMMATRICULATION OEM PIAGGIO 50 TYPHOON 2008 <-2924654 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/4/1/2/img/77412.jpg)
11 |
RIVET OEM PIAGGIO COMMON A LA RANGE-273074 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
12 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 2 |
||||||
|
13 |
809903 - VIS More informationQuantity required : 1 |
||||||
|
14 |
GARDE BOUE ARR |
