Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

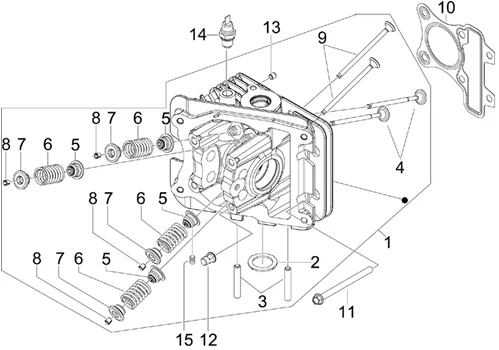

Moteur : 01.10 ENSEMBLE CULASSE - SOUPAPE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_01.10.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/8/6/0/img/94860.jpg)
1 |
CYLINDER HEAD COMPLETE OEM PIAGGIO 50 4T VESPA PRIMAVERA, SPIRINT 2013 > 2017-B019233 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/6/8/img/69368.jpg)
2 |
GASKET EXHAUST OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, ZIP 4T, VESPA LX 4T, PRIMAVERA 4T, SPRINT 4T-845776 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/1/img/65411.jpg)
3 |
STUD (6X37) OEM PIAGGIO COMMON A LA RANGE-016060 More informationQuantity required : 2 |
||||||
4 |
B019234-VALVE D'ADMISSION More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/6/img/69276.jpg)
5 |
GASKET OF VALVE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC COOLING PER AIR-843307 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/6/img/69376.jpg)
6 |
SPRING DE VALVE OEM PIAGGIO 50 4T LIBERTY, ZIP, PRIMAVERA 2013 >/SXR APRILIA 2021 >-845951 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/0/8/img/70408.jpg)
7 |
WASHER CUP SUPERIEURE VALVE OEM PIAGGIO 50 4T LIBERTY, ZIP, SPRINT, PRIMAVERA 2015 >-871889 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/7/8/img/69278.jpg)
8 |
HALF CLAVETTE DE VALVE OEM PIAGGIO 50-125 COMMON ALA RANGE-843338 More informationQuantity required : 8 |
||||||
|
9 |
B019235-VALVE D'ECHAPPEMENT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/3/5/img/70435.jpg)
10 |
CYLINDER HEAD GASKET OEM PIAGGIO 50 ZIP 4T, FLY 4T, LIBERTY 4T, VESPA LX 4T, PRIMAVERA 4T, VESPA-S 4T, SPRINT 4T 4 SOUPAPES-872627 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/3/7/img/66337.jpg)
11 |
SCREW BTR (6X80) OEM PIAGGIO COMMON A LA RANGE-319242 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/4/0/img/70940.jpg)
12 |
NUT FLANGE (D6) DE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE-969224 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
13 |
PION DE CENTRAGE (7, 5X12) OEM PIAGGIO COMMON A LA RANGE-277916 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/0/img/68590.jpg)
14 |
SONDE TEMPERATURE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-82622R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/6/img/69226.jpg)
15 |
CAP 6X10 CASING OEM PIAGGIO COMMON A LA RANGE-842360 More informationQuantity required : 1 |
