Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

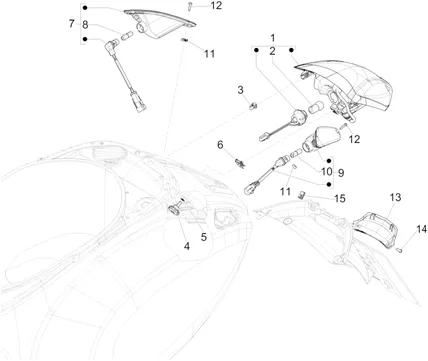

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/5/0/4/img/86504_20260226164033.jpg)
1 |
LAMP REAR OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-642946 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/8/img/65798.jpg)
2 |
AMPOULE/LAMPE 12V 10W BA15S/R10 OEM PIAGGIO COMMON A LA RANGE-181746 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
3 |
AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/3/1/img/75431.jpg)
4 |
BUTTON/SCREW A HEAD MOLETE LAMP REAR OEM PIAGGIO 50-125-150 PRMAVERA, SPRINT VESPA 2013 >-1B000116 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
5 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
6 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/4/3/3/img/140433.jpg)
7 |
REAR RIGHT INDICATOR OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-1D002788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/7/6/img/76176.jpg)
8 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/9/9/2/3/img/159923.jpg)
9 |
REAR LEFT INDICATOR OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-1D002787 More informationQuantity required : 1 |
||||||
|
9 |
REAR LEFT INDICATOR OEM PIAGGIO 50-125 VESPA SPRINT 2014 >, PRIMAVERA 2013 >-1D002787 More informationQuantity required : 1 |
||||||
|
10 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/3/img/72923.jpg)
11 |
NUT SHEET METAL (3, 5 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
12 |
SCREW PARKER (3. 5X13) CRUCIFORME DE FAIRING OEM PIAGGIO COMMON A LA RANGE-008372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/5/0/3/img/75503.jpg)
13 |
COVER ECLAIRAGE DE PLATE DE POLICE OEM PIAGGIO 50 VESPA PRIMAVERA, SPRINT 2014 > 2017-1B0002370000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017406 More informationQuantity required : 2 |
