Vehicle Exploded View - VESPA VESPA SPRINT 50 4T 4V 2014
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

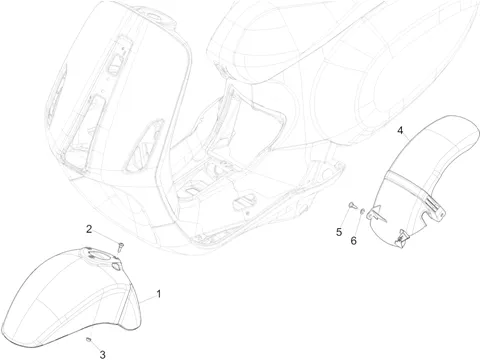

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/231/Vespa_Sprint_50_4T_4V_2014_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/1/4/0/img/178140.jpg)
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > UNPAINTED-1B006646 More informationQuantity required : 1 |
|||||||||
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT WHITE 544 -67364400BR- More informationQuantity required : 1 |
|||||||||
|
1 |
67364400DQ - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
1 |
67364400L5 - GARDE BOUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/7/6/img/91376.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT RED 894 -67364400R7- More informationQuantity required : 1 |
|||||||||
|
1 |
GUARD-MUD FRONT OEM PIAGGIO 50-125 SPRINT VESPA 2014 > UNPAINTED-1B006646 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/7/2/img/91372.jpg)
1 |
FRONT MUDGUARD OEM PIAGGIO 50-125 VESPA SPRINT 2014 > BLACK 94-1B00664600090 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 3 |
|||||||||
|
4 |
MUDGUARD/LECHE REAR WHEEL OEM PIAGGIO 50 FLY 2006 > 2011, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014, 125 FLY 2006 > 2011-1B012164 More informationQuantity required : 1 |
|||||||||
|
4 |
1B005526 - RR MUDGARD ASSY More informationQuantity required : 1 |
|||||||||
|
4 |
1B005526 - RR MUDGARD ASSY More informationQuantity required : 1 |
|||||||||
|
5 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
6 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
|||||||||
