Vehicle Exploded View - VESPA VESPA SPRINT 50 4T-3V E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

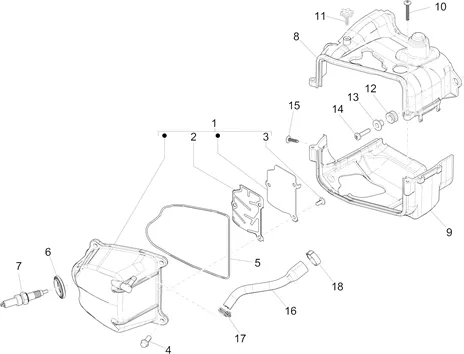

Moteur : 01.12 COUVERCLE CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/801/Vespa_Sprint_50_4T-3V_E4_2017-2018_(EMEA)_01.12.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/4/4/img/149144.jpg)
1 |
COVER CYLINDER HEAD OEM PIAGGIO 50 LIBERRTY, PRIMAVERA, SPRINT, ZIP 4T 2017 >-1A008608 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/8/9/img/69589.jpg)
2 |
GASKET BLOW-BY COVER CYLINDER HEAD OEM PIAGGIO 50 4T ZIP, PRIMAVERA, SPRINT 2017 >-849012 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
3 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
4 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/1/img/127211.jpg)
5 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO 50 4T ZIP, LIBERTY, SPRINT, PRIMAVERA 2017 >-1A000889 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/7/5/6/img/94756.jpg)
6 |
GASKET OF TROU SPARK PLUG OEM PIAGGIO COMMON A LA RANGE-B017488 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/6/8/img/149168.jpg)
7 |
SPARK PLUG IRIDIUM MR8BI-8 OEM PIAGGIO 50 ZIP 4T 2018 >, LIBERTY 4T 2017 >, VESPA PRIMAVERA 4T 2018 >, VESPA SPRINT 2018 >/APRILIA 900 SHIVER, DORSODURO/MOTO-GUZZI V85-1A010638 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/6/6/img/127266.jpg)
8 |
COVER/COVER COTE INTAKE OEM PIAGGIO 50 LIBERRTY, PRIMAVERA, SPRINT, ZIP 4T 2017 >-1A004838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/1/7/img/127217.jpg)
9 |
COVER/COVER COTE EXHAUST OEM PIAGGIO 50 LIBERRTY, PRIMAVERA, SPRINT, ZIP 4T 2017 >-1A002170 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
10 |
SCREW FAIRING/CARROSSERIE OEM PIGGIO COMMON A LA RANGE-259577 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/6/6/img/70966.jpg)
11 |
SCREW COVER ORIGNE PIAGGIO COMMON A LA RANGE-969339 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/7/2/2/img/127722.jpg)
12 |
GUIDE CABLE OEM PIAGGIO COMMON A LA RANGE-B014213 More informationQuantity required : 1 |
||||||
13 |
B014214-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
14 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
15 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 1 |
||||||
|
16 |
1A011403-HOSE RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
17 |
CLAMP FOR HOSE DE 13MM OEM PIAGGIO COMMON A LA RANGE-CM002907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
18 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
