Vehicle Exploded View - VESPA VESPA SPRINT 50 4T-3V E4 2017-2018 (EMEA) VESPA

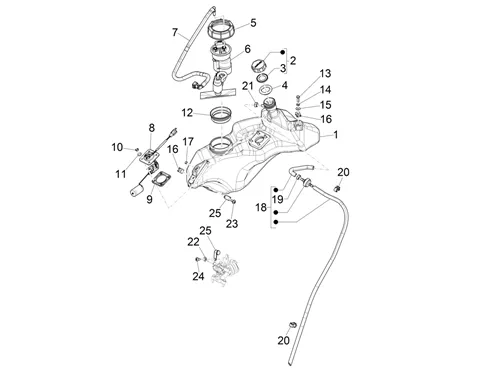

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
Réservoir carburant
Search
673632 - RESERVOIR

1
P2R reference P2R reference 91361
Maker reference Maker reference 673632

673632 - RESERVOIR

More information

Quantity required : 1

1B005534 - RESERVOIR CARBURANT

1
P2R reference P2R reference 151348
Maker reference Maker reference 1B005534

1B005534-TANK FUEL

More information

Quantity required : 1

CAP FUEL TANK OEM PIAGGIO COMMON A LA RANGE-656022

2
P2R reference P2R reference 68308
Maker reference Maker reference 656022

CAP FUEL TANK OEM PIAGGIO COMMON A LA RANGE-656022

More information

Quantity required : 1

GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021

3
P2R reference P2R reference 68307
Maker reference Maker reference 656021

GASKET CAP DE TANK OEM PIAGGIO COMMON A LA RANGE-656021

More information

Quantity required : 1

GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737

4
P2R reference P2R reference 67632
Maker reference Maker reference 620737

GASKET OF CAP DE TANK LIQUIDE COOLING OEM PIAGGIO 125-250-400 BEVERLY, X-EVO, X8, 50-125 VESPA PRIMAVERA, SPRINT, 50 ZIP, NRG/GILERA 125-250-300 NEXUS, X-MAX-620737

More information

Quantity required : 1

NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546

5
P2R reference P2R reference 67133
Maker reference Maker reference 576546

NUT/BUSH PUMP OEM PIAGGIO COMMON A LA RANGE-576546

More information

Quantity required : 1

6405162 - POMPE ELECTRIQUE

6
P2R reference P2R reference 85973
Maker reference Maker reference 6405162

6405162-PUMP ELECTRIC

More information

Quantity required : 1

1B001000R - TUYAU ESSENCE

7
P2R reference P2R reference 75773
Maker reference Maker reference 1B001000R

1B001000R-FUEL HOSE

More information

Quantity required : 1

680057 - INDICATEUR

8
P2R reference P2R reference 92136
Maker reference Maker reference 680057

680057-INDICATEUR

More information

Quantity required : 1

GASKET OF JAUGE FUEL OEM PIAGGIO 50-125 COMMON A LA RANGE-676200

9
P2R reference P2R reference 109364
Maker reference Maker reference 676200

GASKET OF JAUGE FUEL OEM PIAGGIO 50-125 COMMON A LA RANGE-676200

More information

Quantity required : 1

709116 - ECROU

10
P2R reference P2R reference 68494
Maker reference Maker reference 709116

709116-NUT

More information

Quantity required : 4

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

11
P2R reference P2R reference 63803
Maker reference Maker reference 0061255

WASHER PLATE (6. 4X14X1. 5) OEM PIAGGIO COMMON A LA RANGE-006125

More information

Quantity required : 4

GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003

12
P2R reference P2R reference 127181
Maker reference Maker reference 656003

GASKET OF JAUGE A FUEL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-656003

More information

Quantity required : 1

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

13
P2R reference P2R reference 65447
Maker reference Maker reference 0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

More information

Quantity required : 3

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

14
P2R reference P2R reference 65416
Maker reference Maker reference 0164065

WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406

More information

Quantity required : 3

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

15
P2R reference P2R reference 65366
Maker reference Maker reference 0138805

WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880

More information

Quantity required : 3

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

16
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 3

1B000285 - ENTRETOISE

17
P2R reference P2R reference 75528
Maker reference Maker reference 1B000285

1B000285-SPACER

More information

Quantity required : 1

1B000694 - VOLET

18
P2R reference P2R reference 75647
Maker reference Maker reference 1B000694

1B000694-VOLET

More information

Quantity required : 1

CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914

19
P2R reference P2R reference 72875
Maker reference Maker reference CM001914

CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914

More information

Quantity required : 1

PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201

20
P2R reference P2R reference 72917
Maker reference Maker reference CM013201

PINCE CLIPS FITTING KIT HOSE OEM PIAGGIO COMMON A LA RANGE-CM013201

More information

Quantity required : 2

CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914

21
P2R reference P2R reference 72875
Maker reference Maker reference CM001914

CLAMP (14. 5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-CM001914

More information

Quantity required : 1

WASHER PLATE (6. 5X14X0. 6) OEM PIAGGIO COMMON A LA RANGE-097734

22
P2R reference P2R reference 65683
Maker reference Maker reference 0977345

WASHER PLATE (6. 5X14X0. 6) OEM PIAGGIO COMMON A LA RANGE-097734

More information

Quantity required : 1

018509 - VIS

23
P2R reference P2R reference 65434
Maker reference Maker reference 0185095

018509-SCREW

More information

Quantity required : 1

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

24
P2R reference P2R reference 73366
Maker reference Maker reference CM179301

SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301

More information

Quantity required : 1

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

25
P2R reference P2R reference 67101
Maker reference Maker reference 573918

CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918

More information

Quantity required : 2
