Vehicle Exploded View - VESPA VESPA SPRINT 50 4T-3V E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

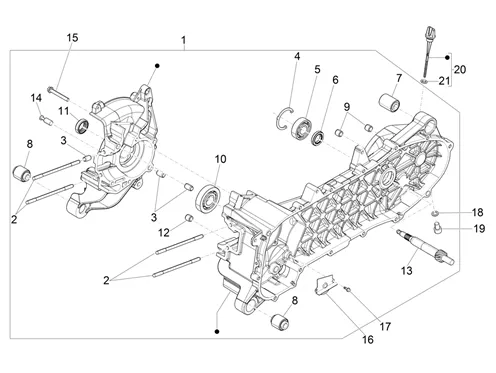

Moteur : 01.05 CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/801/Vespa_Sprint_50_4T-3V_E4_2017-2018_(EMEA)_01.05.png)
1 |
1A008970-CASING ENGINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/5/img/69215.jpg)
2 |
STUD DE CYLINDER OEM PIAGGIO 50 4T COMMON A LA RANGE-842161 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
3 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/0/4/img/66604.jpg)
4 |
CIRCLIPS SHAFT OEM PIAGGIO COMMON A LA RANGE-480953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/3/img/66473.jpg)
5 |
BEARING (17X40X12) SPINDLE PULLEY RECEPTRICE OEM PIAGGIO COMMON A TOUTE LA RANGE SCOOTER 50 CC-435363 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/9/0/img/66590.jpg)
6 |
OIL SEAL (17X28X5) SPINDLE PULLEY CLUTCH OEM PIAGGIO 50 FLY, LIBERTY, NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE/VESPA LX, SPRINT, PRIMAVERA-480066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/1/img/149101.jpg)
7 |
RUBBER MOUNT (10X24X33) OEM PIAGGIO COMMON A LA RANGE-666991 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
8 |
RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
9 |
PION DE CENTRAGE (11X10) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015957 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/2/img/68612_20251023155932.jpg)
10 |
BEARING (20X60X13) EMBIELLAGE OEM ENGINE PIAGGIO 50 4T (SIDE LEFT)-82671R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/8/img/70928.jpg)
11 |
OIL SEAL (17X28X7) DE VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969028 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
12 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/7/img/68737.jpg)
13 |
SHAFT DE PULLEY RECEPTRICE OEM PIAGGIO 50 FLY 4T, LIBERTY 4T, TYPHOON 4T, VESPA PRIMAVERA 4T, VESPA SPRINT 4T/GILERA 50 DNA/APRILIA 50 SPORT-CITY 4T, SR-MOTARD 4T-8282335 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
14 |
PIVOT SPRING DE STAND OEM PIAGGIO COMMON A LA RANGE-483785 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/9/img/66569.jpg)
15 |
SCREW FLANGE TH (6X55) OEM PIAGGIO COMMON A LA RANGE-478895 More informationQuantity required : 10 |
||||||
|
16 |
969625-PROTECTOR OIL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
17 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
19 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
20 |
JAUGE NIVEAU OIL TRANSMISSION OEM PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER-832130 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
21 |
GASKET/BUSH ETANCHEITE (14, 43X9, 19X2, 62) OEM PIAGGIO COMMON A LA RANGE-827085 More informationQuantity required : 1 |
