Vehicle Exploded View - VESPA VESPA S 125 4T 3V ie 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

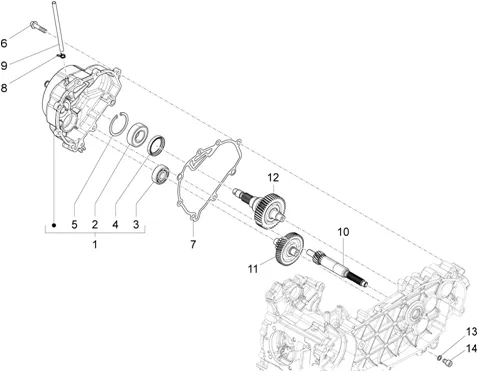

Moteur : 01.25 ENSEMBLE RÉDUCTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/224/Vespa_S_125_4T_3V_ie_2012_01.25.PNG)
1 |
B0161225-COVER DU REDUCTEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/2/7/4/img/127274.jpg)
2 |
BEARING (25X52X15) REDUCTEUR OEM PIAGGIO FLY, LIBERTY 2014 > 2015-1A005346R More informationQuantity required : 1 |
||||||
|
2 |
BEARING (25X52X15) REDUCTEUR OEM PIAGGIO FLY, LIBERTY 2014 > 2015-1A005346R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/8/4/7/img/92847.jpg)
3 |
BEARING (15X42X13) RADIAL ENSEMBLE REDUCTEUR OEM COMMON A LA RANGE PIAGGIO-83026R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/0/img/72690.jpg)
4 |
OIL SEAL (35X47X7) OEM PIAGGIO COMMON A LA RANGE-B015623 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
5 |
CLIPS/CIRCLIPS (52X56, 2X2) OEM PIAGGIO COMMON A LA RANGE-006652 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
6 |
SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-B016772 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/6/9/7/img/94697.jpg)
7 |
GASKET COVER DE REDUCTEUR OEM PIAGGIO 125 2012 > COMMON A LA RANGE-B016456 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
8 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/4/img/72894.jpg)
8 |
HOSE CLAMP HOSE (10X13) OEM PIAGGIO COMMON A LA RANGE-CM002908 More informationQuantity required : 1 |
||||||
|
9 |
B017276-HOSE OIL More informationQuantity required : 1 |
||||||
|
10 |
B017168-SHAFT DE PULLEY More informationQuantity required : 1 |
||||||
|
11 |
8319145-SHAFT DE RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/4/img/139444.jpg)
12 |
REAR IMPELLER SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA-S, VESPA LX/APRILIA 125 MOJITO -B0161805- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
13 |
GASKET OF VIDANGE CASING DE TRANSMISSION (8, 2X12X1) OEM PIAGGIO COMMON A TOUTE LA RANGE-485703-X000D More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
14 |
SCREW BTR (8X12) OEM PIAGGIO COMMON A LA RANGE-269755 More informationQuantity required : 1 |
