Vehicle Exploded View - VESPA VESPA S 125 4T 3V ie 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

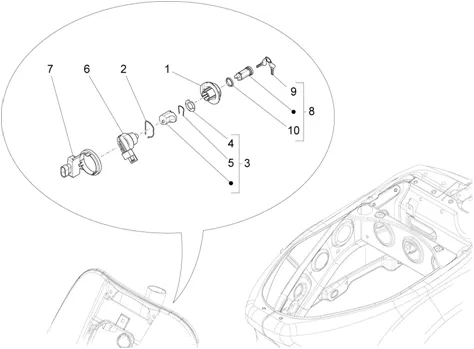

Châssis - parties plastiques - carrosseries : 02.46 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/224/Vespa_S_125_4T_3V_ie_2012_02.46.PNG)
1 |
672564-BODY LOCK More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/8/img/66008.jpg)
2 |
SPRING D'ARRET DE IGNITION SWITCH OEM PIAGGIO COMMON A TOUTE LA RANGE-253937 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/7/2/img/154072.jpg)
3 |
BLOC LOCK SCOOT OEM PIAGGIO 50-125 FLY, LIBERTY, ZIP, VESPA LX, 125-250-400 X8, X-EVO, 125-250-300 VESPA GTS/GILERA 50 RUNNER/APRILIA 50-125 SR, SPORT-CITY-1B006291 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/5/img/66305.jpg)
4 |
WASHER DE BLOC STEERING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-298594 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/9/img/66309.jpg)
5 |
SPRING D'ARRET SERRRURE OEM PIAGGIO COMMON A TOUTE LA RANGE-298838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/9/8/2/1/5/img/198215.jpg)
6 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
||||||
|
6 |
IGNITION SWITCH OEM PIAGGIO 50 ZIP 1998 >, NRG POWER 2005 >, LIBERTY 1998 > 50-125 FLY 2005 >, VESPA LX 2005 >,/GILERA 50 RUNNER 2000 >/APRILIA 50 SR MOTARD 2012 > (COTE HARNESS)-1D002436 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/9/0/img/67790.jpg)
7 |
ANTENNE OEM PIAGGIO 125-300 MP3, YOURBAN, BEVERLY, VESPA GTS, X7, 125 VESPA LX, PRIMAVERA, LIBERTY, FLY/GILERA 125-250-300 NEXUS/APRILIA 125-300 SR-MAX-1D004058R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/8/1/9/img/90819.jpg)
8 |
SET OF CLES WITH BARILLET OEM PIAGGIO 125 LIBERTY 2014, VESPA PRIMAVERA 2013 >, VESPA SPRINT 2014 >, VESPA-S 2012 > 3V-1B005661 More informationQuantity required : 1 |
||||||
|
9 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/8/img/66308.jpg)
10 |
GASKET OF LOCK OEM PIAGGIO COMMON A TOUTE LA RANGE-298731 More informationQuantity required : 1 |
