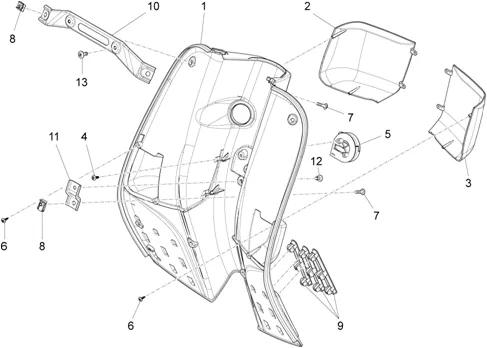

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/224/Vespa_S_125_4T_3V_ie_2012_02.30.PNG)
1 |
LEG SHIELD INNER OEM PIAGGIO 50-125 VESPA-S BLACK 94-6571180090 More informationQuantity required : 1 |
||||||
|
1 |
65711800BR-UNDERSEAT COMPARTMENT More informationQuantity required : 1 |
||||||
|
1 |
65711800DI - CONTRE-TABLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/2/5/3/img/126253.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA-S BLACK 85/B -65711800NL- More informationQuantity required : 1 |
||||||
|
1 |
65711800R7 - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/5/8/img/89658.jpg)
1 |
LEG SHIELD INNER OEM PIAGGIO 50-125 VESPA-S UNPAINTED READY TO PAINT-657118 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/2/9/9/img/88299.jpg)
2 |
VIDE POCHE RIGHT ON LEG SHIELD INNER OEM PIAGGIO 50-125 VESPA-S-654295 More informationQuantity required : 1 |
||||||
|
2 |
6542950090-DOOR OBJET DRO. More informationQuantity required : 1 |
||||||
|
2 |
65429500BR - PORTE OBJET DRO. More informationQuantity required : 1 |
||||||
|
2 |
65429500DI-DOOR OBJET DRO. More informationQuantity required : 1 |
||||||
|
2 |
65429500NL-DOOR OBJET DRO. More informationQuantity required : 1 |
||||||
|
2 |
65429500R7 - PORTE OBJET DRO. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/2/8/3/img/88283.jpg)
3 |
VIDE POCHE LEFT ON LEG SHIELD INNER OEM PIAGGIO 50-125 VESPA-S-654294 More informationQuantity required : 1 |
||||||
|
3 |
6542940090 - PORTE OBJET GAU. More informationQuantity required : 1 |
||||||
|
3 |
65429400BR - PORTE OBJET GAU. More informationQuantity required : 1 |
||||||
|
3 |
65429400DI-DOOR OBJET GAU. More informationQuantity required : 1 |
||||||
|
3 |
65429400NL-DOOR OBJET GAU * More informationQuantity required : 1 |
||||||
|
3 |
65429400R7 - PORTE OBJET GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/8/img/73358.jpg)
4 |
SCREW TORX (4, 2X13) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/2/2/img/67122.jpg)
5 |
CROCHET DOOR SAC OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-575819 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
6 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
7 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-248419 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/3/1/5/img/88315.jpg)
9 |
BANDE CONTRE LEG SHIELD OEM PIAGGIO 50-125 VESPA S 2007 >-654297 More informationQuantity required : 6 |
||||||
|
10 |
654290-BRACKET More informationQuantity required : 1 |
||||||
|
11 |
654292-CALIPER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
12 |
SCREW FLANGE TH (6X10) OEM PIAGGIO COMMON A LA RANGE-969296 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
13 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
