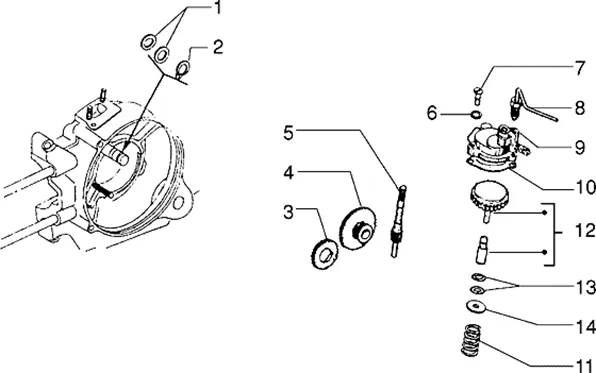

Vehicle Exploded View - VESPA VESPA PX 150 E 1998-2005 VESPA

Moteur : T17 MELANGEUR AUTOMATIQUE
Melangeur automatique
Search
WASHER OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-133223

1
P2R reference P2R reference 74683
Maker reference Maker reference 133223

WASHER OF PUMP A OIL OEM PIAGGIO 125 PX VESPA-133223

More information

Quantity required : 2

CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408

2
P2R reference P2R reference 63808
Maker reference Maker reference 0064085

CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408

More information

Quantity required : 1

287038 - PIGNON

3
P2R reference P2R reference 77532
Maker reference Maker reference 287038

2870386-SPROCKET

More information

Quantity required : 1

OIL PUMP PINION "PIAGGIO GENUINE PART" 125 VESPA PX -236402-

4
P2R reference P2R reference 76754
Maker reference Maker reference 236402

SPROCKET DE RENVOI OF PUMP A OIL OEM PIAGGIO 125 VESPA PX-236402

More information

Quantity required : 1

SPROCKET/ROD OF OIL PUMP OEM PIAGGIO 125 VESPA PX-287014

5
P2R reference P2R reference 77529
Maker reference Maker reference 287014

SPROCKET/ROD OF OIL PUMP OEM PIAGGIO 125 VESPA PX-287014

More information

Quantity required : 1

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

6
P2R reference P2R reference 63836
Maker reference Maker reference 0069645

WASHER SPRING (4. 3X8X0. 5) OEM PIAGGIO COMMON A LA RANGE-006964

More information

Quantity required : 3

SCREW OF OIL PUMP OEM PIAGGIO 125 PX VESPA 1998 >-008339

7
P2R reference P2R reference 73690
Maker reference Maker reference 0083395

SCREW OF OIL PUMP OEM PIAGGIO 125 PX VESPA 1998 >-008339

More information

Quantity required : 3

TUBE/HOSE OF PUMP A OIL OEM PIAGGIO 125 PX-238873

8
P2R reference P2R reference 76794
Maker reference Maker reference 238873

TUBE/HOSE OF PUMP A OIL OEM PIAGGIO 125 PX-238873

More information

Quantity required : 1

B0167176 - COUVERCLE

9
P2R reference P2R reference 94709
Maker reference Maker reference B0167176

B0167176 - COUVERCLE

More information

Quantity required : 1

GASKET OF OIL PUMP OEM PIAGGIO 125 VESPA PX 1998 >-B013741

10
P2R reference P2R reference 94530
Maker reference Maker reference B013741

GASKET OF OIL PUMP OEM PIAGGIO 125 VESPA PX 1998 >-B013741

More information

Quantity required : 1

165260 - RESSORT PISTON

11
P2R reference P2R reference 146225
Maker reference Maker reference 165260

165260 - RESSORT PISTON

More information

Quantity required : 1

SPINDLE + GEAR PUMP OEM PIAGGIO 125 PX-B0167186

12
P2R reference P2R reference 94710
Maker reference Maker reference B0167186

SPINDLE + GEAR PUMP OEM PIAGGIO 125 PX-B0167186

More information

Quantity required : 1

O-RING (9X12. 5X1. 7) OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL, PX125 VESPA-006708

13
P2R reference P2R reference 63830
Maker reference Maker reference 0067085

O-RING (9X12. 5X1. 7) OEM PIAGGIO THREE-WHEELER APE TM 703 FUEL, PX125 VESPA-006708

More information

Quantity required : 2

WASHER OIL PUMP OEM PIAGGIO 125 PX VESPA-400282

14
P2R reference P2R reference 66346
Maker reference Maker reference 400282

WASHER OIL PUMP OEM PIAGGIO 125 PX VESPA-400282

More information

Quantity required : 1
