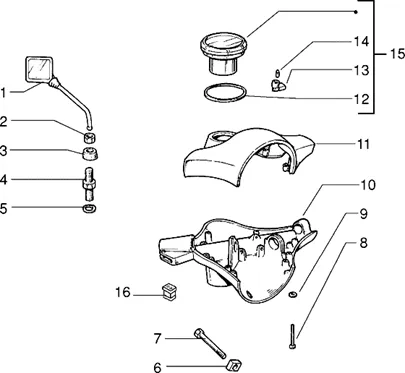

Vehicle Exploded View - VESPA VESPA PX 150 E 1998-2005 VESPA

Guidon : T46 GUIDON-COMPTEUR KILOMETRIQUE
Guidon-compteur kilometrique
Search
RETROVISEURS RIGHT AND LEFT OEM PIAGGIO 125 VESPA PX 1998 > 2017 (PAIRE)-CM028003

1
P2R reference P2R reference 95371
Maker reference Maker reference CM028003

RETROVISEURS RIGHT AND LEFT OEM PIAGGIO 125 VESPA PX 1998 > 2017 (PAIRE)-CM028003

More information

Quantity required : 1

NUT DE MIRROR OEM PIAGGIO 125 VESPA PX, 50-125 VESPA-S, THREE-WHEELER APE-227673

2
P2R reference P2R reference 76622
Maker reference Maker reference 227673

NUT DE MIRROR OEM PIAGGIO 125 VESPA PX, 50-125 VESPA-S, THREE-WHEELER APE-227673

More information

Quantity required : 2

244126 - JOINT

3
P2R reference P2R reference 76867
Maker reference Maker reference 244126

244126 - JOINT

More information

Quantity required : 2

RUBBER MIRROR OEM PIAGGIO 125 VESPA PX-622427

3
P2R reference P2R reference 84612
Maker reference Maker reference 622427

RUBBER MIRROR OEM PIAGGIO 125 VESPA PX-622427

More information

Quantity required : 2

BRACKET DE MIRROR OEM PIAGGIO 125 VESPA PX 1998 >-622391

4
P2R reference P2R reference 84607
Maker reference Maker reference 622391

BRACKET DE MIRROR OEM PIAGGIO 125 VESPA PX 1998 >-622391

More information

Quantity required : 2

WASHER SPRING (8. 4X16X0. 6) OEM PIAGGIO COMMON A LA RANGE-007609

5
P2R reference P2R reference 73688
Maker reference Maker reference 0076095

WASHER SPRING (8. 4X16X0. 6) OEM PIAGGIO COMMON A LA RANGE-007609

More information

Quantity required : 2

NUT CARRE (M10) OEM PIAGGIO 125 PX VESPA-070620

6
P2R reference P2R reference 74153
Maker reference Maker reference 0706205

NUT CARRE (M10) OEM PIAGGIO 125 PX VESPA-070620

More information

Quantity required : 1

SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554

7
P2R reference P2R reference 68294
Maker reference Maker reference 655554

SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554

More information

Quantity required : 1

SCREW CRUCIFORME (5X35) OEM PIAGGIO COMMON A LA RANGE-015835

8
P2R reference P2R reference 65398
Maker reference Maker reference 0158355

SCREW CRUCIFORME (5X35) OEM PIAGGIO COMMON A LA RANGE-015835

More information

Quantity required : 4

003055 - RONDELLE

9
P2R reference P2R reference 63776
Maker reference Maker reference 0030555

003055-WASHER

More information

Quantity required : 4

5637895 - PARTIE INF

10
P2R reference P2R reference 79958
Maker reference Maker reference 5637895

5637895-PARTIE INF

More information

Quantity required : 1

HANDLEBAR COVER UPPER OEM PIAGGIO 125 PX VESPA UNPAINTED READY TO PAINT-6224306

11
P2R reference P2R reference 84613
Maker reference Maker reference 6224306

HANDLEBAR COVER UPPER OEM PIAGGIO 125 PX VESPA UNPAINTED READY TO PAINT-6224306

More information

Quantity required : 1

179230 - JOINT

12
P2R reference P2R reference 75057
Maker reference Maker reference 179230

179230-GASKET

More information

Quantity required : 1

DOOR AMPOULE OEM PIAGGIO THREE-WHEELER APE 2012 <-214191

13
P2R reference P2R reference 65923
Maker reference Maker reference 214191

DOOR AMPOULE OEM PIAGGIO THREE-WHEELER APE 2012 <-214191

More information

Quantity required : 4

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

14
P2R reference P2R reference 65760
Maker reference Maker reference 164634

AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634

More information

Quantity required : 4

SPEEDOMETER "PIAGGIO GENUINE PART" 125 VESPA PX 2007> -583074-

15
P2R reference P2R reference 81863
Maker reference Maker reference 583074

SPEEDOMETER "PIAGGIO GENUINE PART" 125 VESPA PX 2007> -583074

More information

Quantity required : 1

580810 - PASSE CABLES

16
P2R reference P2R reference 81463
Maker reference Maker reference 580810

580810-GUIDE CABLES

More information

Quantity required : 1
