Vehicle Exploded View - VESPA VESPA PX 150 E 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

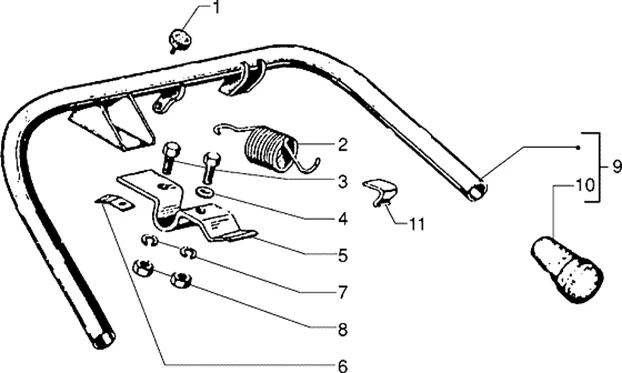

Châssis : T28 BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/726/Vespa_PX_150_E_1998-2005_T28.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/4/9/8/8/img/74988.jpg)
1 |
BUFFER DE STAND OEM PIAGGIO 125 VESPA PX-174773 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/1/0/img/75010.jpg)
2 |
176169 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/1/4/img/75014.jpg)
2 |
SPRING DE STAND OEM PIAGGIO 125 VESPA PX-176444 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
3 |
SCREW TH (6X18) OEM PIAGGIO COMMUNA LA RANGE-031089 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
4 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/0/9/img/75009.jpg)
5 |
MOUNTING DE STAND RIGHT OEM PIAGGIO 125 PX-176168 More informationQuantity required : 1 |
||||||
5 |
MOUNTING DE STAND LEFT OEM PIAGGIO 125 PX-258733 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/0/5/2/img/77052.jpg)
6 |
PLATE DE STAND OEM PIAGGIO 125 PX VESPA-258555 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
7 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 4 |
||||||
|
8 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/0/7/img/75007.jpg)
9 |
CENTRE STAND OEM PIAGGIO 125 VESPA PX 1998 >-1761606 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/0/0/8/img/75008.jpg)
10 |
EMBOUT DE STAND OEM PIAGGIO 125 VESPA PX-176166 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/0/2/7/3/img/90273.jpg)
11 |
PLATE MOUNTING DE SPRING STAND OEM PIAGGIO VESPA 125 PX-667782 More informationQuantity required : 1 |
