Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

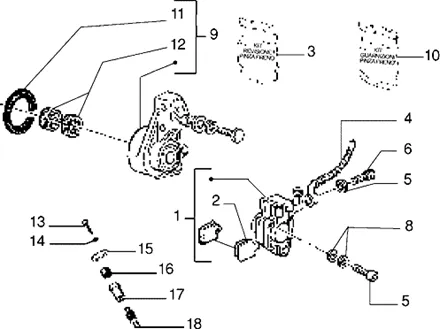

Suspensions-roues : T41 ETRIER DE FREIN
Etrier de frein
Search
BRAKE CALIPER "PIAGGIO GENUINE PART" 125 VESPA PX -58573R-

1
P2R reference P2R reference 82174
Maker reference Maker reference 58573R

CALIPER DE FRIEN FRONT GRIMECA OEM PIAGGIO 125 VESPA PX-58573R

More information

Quantity required : 1

PLATE BRAKE FRONT OEM PIAGGIO 125 VESPA PX 1998 > (PAIRE)-647176

2
P2R reference P2R reference 68013
Maker reference Maker reference 647176

PLATE BRAKE FRONT OEM PIAGGIO 125 VESPA PX 1998 > (PAIRE)-647176

More information

Quantity required : 1

498443 - KIT REV PINCE FREIN

3
P2R reference P2R reference 79632
Maker reference Maker reference 498443

498443 - KIT REV PINCE FREIN

More information

Quantity required : 1

FRONT BRAKE HOSE "PIAGGIO GENUINE PART" VESPA 125 PX -563806

4
P2R reference P2R reference 79964
Maker reference Maker reference 563806

FRONT BRAKE HOSE "PIAGGIO GENUINE PART" VESPA 125 PX -563806

More information

Quantity required : 1

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

5
P2R reference P2R reference 65723
Maker reference Maker reference 127927

GASKET CUIVRE (10X16X1) BRAKE CALIPER OEM PIAGGIO COMMON A TOUTE LA RANGE-127927

More information

Quantity required : 2

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

6
P2R reference P2R reference 66050
Maker reference Maker reference 265451

SCREW BANJO FOR BRAKE OEM PIAGGIO COMMON A LA RANGE-265451

More information

Quantity required : 1

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

7
P2R reference P2R reference 67332
Maker reference Maker reference 597150

SCREW BTR (8X25) CALIPER OU SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE-597150

More information

Quantity required : 2

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

8
P2R reference P2R reference 68491
Maker reference Maker reference 709047

WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047

More information

Quantity required : 2

5638045 - SUPPORT

9
P2R reference P2R reference 79963
Maker reference Maker reference 5638045

5638045-BRACKET

More information

Quantity required : 1

498434 - KIT REV GARNITURE

10
P2R reference P2R reference 79624
Maker reference Maker reference 498434

498434 - KIT REV GARNITURE

More information

Quantity required : 1

WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575

11
P2R reference P2R reference 65793
Maker reference Maker reference 179575

WASHER PLATE (6. 5X18. 4) OEM PIAGGIO COMMON A LA RANGE-179575

More information

Quantity required : 1

CAGE A AIGUILLES SHAFT OF HUB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C006892

12
P2R reference P2R reference 198561
Maker reference Maker reference 1C006892

CAGE A AIGUILLES SHAFT OF HUB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C006892

More information

Quantity required : 2

CAGE A AIGUILLES SHAFT OF HUB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C006892

12
P2R reference P2R reference 198561
Maker reference Maker reference 177436

CAGE A AIGUILLES SHAFT OF HUB OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-1C006892

More information

Quantity required : 2

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

13
P2R reference P2R reference 65632
Maker reference Maker reference 0310565

SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-031056

More information

Quantity required : 1

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

14
P2R reference P2R reference 65415
Maker reference Maker reference 0164055

WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405

More information

Quantity required : 1

PLATE MOUNTING TRANSMISSION INSTRUMENT CLUSTER OEM PIAGGIO 125 PX-601102

15
P2R reference P2R reference 82969
Maker reference Maker reference 601102

PLATE MOUNTING TRANSMISSION INSTRUMENT CLUSTER OEM PIAGGIO 125 PX-601102

More information

Quantity required : 1

174129 - TAMPON

16
P2R reference P2R reference 74972
Maker reference Maker reference 174129

174129 - TAMPON

More information

Quantity required : 1

BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369

17
P2R reference P2R reference 140126
Maker reference Maker reference 1C001369

BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369

More information

Quantity required : 1

BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369

17
P2R reference P2R reference 140126
Maker reference Maker reference 564053

BRACKET DE SPROCKET DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA PX, 125-250 VESPA GTS-1C001369

More information

Quantity required : 1

SPROCKET ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 125 VESPA PX 1998 >-177508

18
P2R reference P2R reference 75027
Maker reference Maker reference 177508

SPROCKET ENTRAINEUR DE INSTRUMENT CLUSTER OEM PIAGGIO 125 VESPA PX 1998 >-177508

More information

Quantity required : 1
