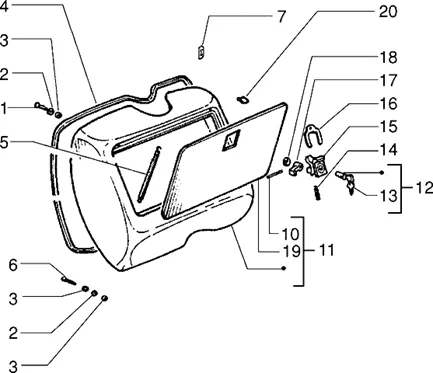

Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Châssis : T36 COFFRE
Coffre
Search
SCREW (5X25) DE BOX A GANT OEM VESPA 125 PX-014726

1
P2R reference P2R reference 73795
Maker reference Maker reference 0147265

SCREW (5X25) DE BOX A GANT OEM VESPA 125 PX-014726

More information

Quantity required : 2

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

2
P2R reference P2R reference 65342
Maker reference Maker reference 0125285

WASHER A TEETH (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-012528

More information

Quantity required : 4

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

3
P2R reference P2R reference 65460
Maker reference Maker reference 0201055

NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105

More information

Quantity required : 6

623327-GASKET

4
P2R reference P2R reference 84798
Maker reference Maker reference 623327

623327-GASKET

More information

Quantity required : 1

SPRING DE DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125-200 PX VESPA 2005 <-012218

5
P2R reference P2R reference 73737
Maker reference Maker reference 0122185

SPRING DE DOOR DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125-200 PX VESPA 2005 <-012218

More information

Quantity required : 1

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

6
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

More information

Quantity required : 2

CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594

7
P2R reference P2R reference 67161
Maker reference Maker reference 577594

CLIPS ADHESIF OEM PIAGGIO COMMON A LA RANGE-577594

More information

Quantity required : 2

SPINDLE PIVOT DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 2017 <-097523

10
P2R reference P2R reference 74409
Maker reference Maker reference 0975235

SPINDLE PIVOT DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 2017 <-097523

More information

Quantity required : 2

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125 VESPA PX UNPAINTED 1983 >-6732335

11
P2R reference P2R reference 91028
Maker reference Maker reference 6732335

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125 VESPA PX UNPAINTED 1983 >-6732335

More information

Quantity required : 1

SET OF CLES WITH 3 BARILLETS (13 MM) OEM PIAGGIO 50 TYPHOON 1998 > 2005, ZIP RST 1998 > 2005, 125 SKIPPER 1998 > 2005, 125 VESPA PX 1998 >-1792925

12
P2R reference P2R reference 139463
Maker reference Maker reference 1792925

SET OF CLES WITH 3 BARILLETS (13 MM) OEM PIAGGIO 50 TYPHOON 1998 > 2005, ZIP RST 1998 > 2005, 125 SKIPPER 1998 > 2005, 125 VESPA PX 1998 >-1792925

More information

Quantity required : 1

EBAUCHE DE CLE OEM PIAGGIO 50 NRG, TYPHOON, ZIP 1998 > 2005-257710

13
P2R reference P2R reference 66024
Maker reference Maker reference 257710

EBAUCHE DE CLE OEM PIAGGIO 50 NRG, TYPHOON, ZIP 1998 > 2005-257710

More information

Quantity required : 1

SPRING LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA-073111

14
P2R reference P2R reference 74174
Maker reference Maker reference 0731115

SPRING LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA-073111

More information

Quantity required : 1

FRONT BOOT LOCK "PIAGGIO GENUINE PART" PIAGGIO VESPA 125 PX -576998-

15
P2R reference P2R reference 81030
Maker reference Maker reference 576998

MECANISME DE LOCK UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO VESPA 125 PX-576998

More information

Quantity required : 1

PLATE LOCK UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 1998 >-073260

16
P2R reference P2R reference 74178
Maker reference Maker reference 0732605

PLATE LOCK UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 1998 >-073260

More information

Quantity required : 1

672942-LEVER LOCK

17
P2R reference P2R reference 90906
Maker reference Maker reference 672942

672942-LEVER LOCK

More information

Quantity required : 1

WASHER ELASTIC SPECIALE LOCK UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 2008 <-177835

18
P2R reference P2R reference 75033
Maker reference Maker reference 177835

WASHER ELASTIC SPECIALE LOCK UNDERSEAT COMPARTMENT OEM PIAGGIO 125 PX VESPA 2008 <-177835

More information

Quantity required : 1

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125 VESPA PX UNPAINTED 1983 >-6732335

19
P2R reference P2R reference 91028
Maker reference Maker reference 6732335

UNDERSEAT COMPARTMENT FRONT OEM PIAGGIO 125 VESPA PX UNPAINTED 1983 >-6732335

More information

Quantity required : 1

BUFFER RUBBER BOX A GANT OEM PIAGGIO 125 PX VESPA-149908

20
P2R reference P2R reference 74784
Maker reference Maker reference 149908

BUFFER RUBBER BOX A GANT OEM PIAGGIO 125 PX VESPA-149908

More information

Quantity required : 4
