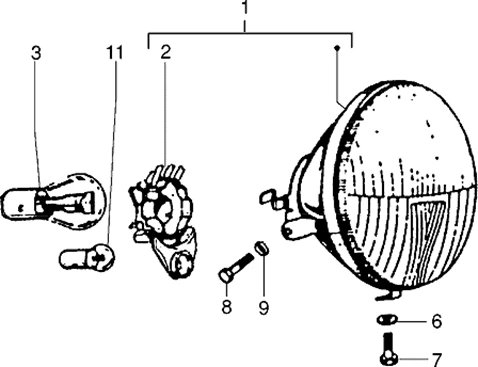

Vehicle Exploded View - VESPA VESPA PX 125 E 1998-2005 VESPA

Connexions électriques : T53 GROUPE OPTIQUE
Groupe optique
Search
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-150-200 VESPA PX 2000 <-1R000267

1
P2R reference P2R reference 140277
Maker reference Maker reference 1R000267

LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-150-200 VESPA PX 2000 <-1R000267

More information

Quantity required : 1

LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-150-200 VESPA PX 2001 >-582946

1
P2R reference P2R reference 81848
Maker reference Maker reference 582946

LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 125-150-200 VESPA PX 2001 >-582946

More information

Quantity required : 1

583542 - PROJECTEUR

1
P2R reference P2R reference 81941
Maker reference Maker reference 583542

583542-LAMP UNIT WITHOUT AMPOULES

More information

Quantity required : 1

DOOR AMPOULE OEM PIAGGIO 125 VESPA PX 2005 <-199370

2
P2R reference P2R reference 75272
Maker reference Maker reference 199370

DOOR AMPOULE OEM PIAGGIO 125 VESPA PX 2005 <-199370

More information

Quantity required : 1

102111 - AMPOULE 12V 25/25W

3
P2R reference P2R reference 65693
Maker reference Maker reference 102111

102111 - AMPOULE 12V 25/25W

More information

Quantity required : 1

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

6
P2R reference P2R reference 65360
Maker reference Maker reference 0137635

WASHER PLATE (4X12) OEM PIAGGIO COMMON A LA RANGE-013763

More information

Quantity required : 1

SCREW TH (4X12) OEM PIAGGIO COMMON A LA RANGE-031027

7
P2R reference P2R reference 65630
Maker reference Maker reference 0310275

SCREW TH (4X12) OEM PIAGGIO COMMON A LA RANGE-031027

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

8
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 2

WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532

9
P2R reference P2R reference 65344
Maker reference Maker reference 0125325

WASHER EVENTAIL (5X10) OEM PIAGGIO COMMON A LA RANGE-012532

More information

Quantity required : 2

181747 - AMPOULE 12V 5W

11
P2R reference P2R reference 65799
Maker reference Maker reference 181747

181747 - AMPOULE 12V 5W

More information

Quantity required : 1
