Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 2T NO ABS E2-E3 2013-2017 EMEA
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

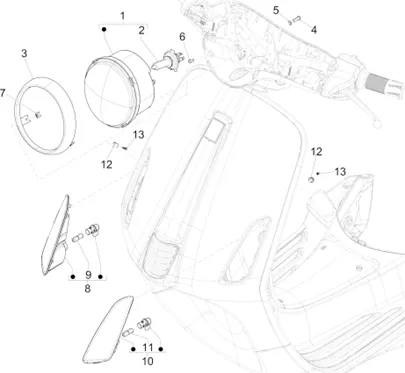

Circuit électrique : 06.03 ECLAIRAGES AVANT - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1260/Vespa_Primavera_50_2T_NO_ABS_E2-E3_2013-2017_EMEA_06.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/3/4/img/92134_20260226164036.jpg)
1 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-680055 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/2/img/65962.jpg)
2 |
AMPOULE/LAMPE 12V 35/35W HS1 OEM PIAGGIO COMMON A LA RANGE-231215 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/4/2/img/86442_20260226164029.jpg)
3 |
SURROUND/ENJOLIVEUR DE HEADLAMP OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >-642662 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/5/img/139445.jpg)
4 |
SCREW TORX (5X16) OEM PIAGGIO COMMON A LA RANGE-B0167965 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
5 |
WASHER ELASTIC (5, 3X10) OEM PIAGGIO COMMON A LA RANGE-006965 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/6/3/img/67663.jpg)
6 |
SCREW BTR HEAD BOMBEE (4X10) OEM PIAGGIO COMMON A LA RANGE-621914 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/3/img/95193.jpg)
7 |
NUT SHEET METAL (3, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017418 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/3/7/img/86437.jpg)
8 |
FRONT RIGHT INDICATOR LEED OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-642651 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/4/2/img/92142_20260413172142.jpg)
8 |
FRONT RIGHT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800855 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/6/1/7/6/img/76176.jpg)
9 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/4/3/6/img/86436.jpg)
10 |
FRONT LEFT INDICATOR LEED OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-642650 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/1/4/1/img/92141_20260413172134.jpg)
10 |
FRONT LEFT INDICATOR OEM PIAGGIO 50 VESPA PRIMAVERA 2013 >, SPRINT 2014 >-6800845 More informationQuantity required : 1 |
||||||
|
11 |
AMPOULE/LAMPE 12V 6W BAZ9S/H6W ORANGE OEM PIAGGIO COMMON A LA RANGE-1D000261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
12 |
CAPSULE OF FITTING KIT FAIRING OEM PIAGGIO COMMON A LA RANGE-192598 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
13 |
SCREW AUTOTARAUDEUSE (2, 9X9, 5) CRUCIFORME OEM PIAGGIO COMMON A TOUTE LA RANGE-015727 More informationQuantity required : 2 |
