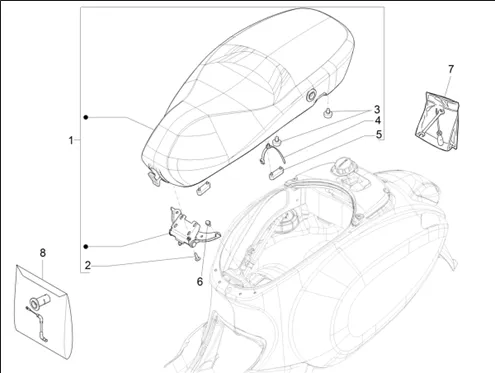

Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 2T NO ABS E2-E3 2013-2017 EMEA VESPA

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES
Selle/sieges
Search
1B000345000D1 - SELLE

1
P2R reference P2R reference 146303
Maker reference Maker reference 1B000345000D1

1B000345000D1-SEAT

More information

Quantity required : 1

1B000345000C6 - SELLE

1
P2R reference P2R reference 146302
Maker reference Maker reference 1B000345000C6

1B000345000C6-SEAT *

More information

Quantity required : 1

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > RED-1B000345000C1

1
P2R reference P2R reference 75559
Maker reference Maker reference 1B000345000C1

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > RED-1B000345000C1

More information

Quantity required : 1

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > BEIGE-1B000345000C2

1
P2R reference P2R reference 75560
Maker reference Maker reference 1B000345000C2

SEAT OEM PIAGGIO 50-125 VESPA PRIMAVERA 2013 > BEIGE-1B000345000C2

More information

Quantity required : 1

SEAT OEM PIAGGIO 50 VESPA PRIMAVERA TOURING-1B002192

1
P2R reference P2R reference 127454
Maker reference Maker reference 1B002192

SEAT OEM PIAGGIO 50 VESPA PRIMAVERA TOURING-1B002192

More information

Quantity required : 1

1B000345000C3 - SELLE

1
P2R reference P2R reference 75561
Maker reference Maker reference 1B000345000C3

1B000345000C3-SEAT *

More information

Quantity required : 1

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

2
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 4

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

3
P2R reference P2R reference 67157
Maker reference Maker reference 577492

BUFFER DE SEAT OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-577492

More information

Quantity required : 2

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

4
P2R reference P2R reference 66307
Maker reference Maker reference 298729

CLAMP OEM PIAGGIO COMMON A LA RANGE-298729

More information

Quantity required : 1

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

5
P2R reference P2R reference 66292
Maker reference Maker reference 296456

BUFFER SEAT OEM PIAGGIO COMMIN A LA RANGE-296456

More information

Quantity required : 2

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

6
P2R reference P2R reference 72706
Maker reference Maker reference B016426

SCREW FLANGE TH (6X14) OEM PIAGGIO COMMON A LA RANGE-B016426

More information

Quantity required : 4

1C000595 - TROUSSE OUTILS

7
P2R reference P2R reference 76024
Maker reference Maker reference 1C000595

1C000595-TROUSSE OUTILS

More information

Quantity required : 1

KIT MECANISME OUVERTURE DE SEAT OEM PIAGGIO 50 PRIMAVERA VESPA 2013 > 2017-1B005312

8
P2R reference P2R reference 205230
Maker reference Maker reference 1B005312

KIT MECANISME OUVERTURE DE SEAT OEM PIAGGIO 50 PRIMAVERA VESPA 2013 > 2017-1B005312

More information

Quantity required : 1
