Vehicle Exploded View - VESPA VESPA LXV 50 2T 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

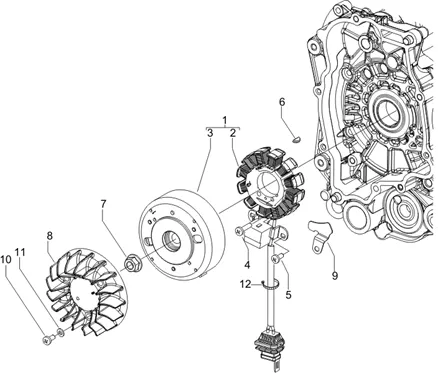

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/720/Vespa_LXV_50_2T_2006-2009_01.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/4/img/67214.jpg)
1 |
IGNITION OEM PIAGGIO 50 FLY 2T, LIBERTY 2T, NRG, TYPHOON, ZIP 2T, VESPA LX 2T, PRIMAVERA 2T, SPRINT 2T, VESPA-S 2T/APRILIA 50 SR MOTARD 2T, MOJITO, SR H2O/GILERA 50 RUNNER, DNA, STALKER/-58136R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/6/1/img/67861.jpg)
2 |
STATOR SCOOT OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-639865 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/0/3/img/67303.jpg)
3 |
ROTOR (KOKUSAN) OEM PIAGGIO 50 FLY 2000 >, ZIP 2000 >, LIBERTY 2000 >, VESPA LX 2000 >, PRIMAVERA 2013 >, TYPHOON 2005 >, NRG 2000 >/GILERA 50 RUNNER 2000 >, STALKER 2000 >/APRILIA SR 2003 >-584526 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
4 |
SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/1/4/img/70514.jpg)
5 |
SCREW CRUCIFORME (5X14) OEM PIAGGIO COMMON A LA RANGE-873979 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
5 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
6 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
7 |
NUT IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 4T-289005 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/4/img/68774.jpg)
8 |
TURBINE/VENTILATEUR IGNITION OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, LIBERTY, FLY/APRILIA 50 SR MOTARD 2T/VESPA 50 LX, SPRINT, PRIMAVERA 2T-828765 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/0/5/img/68705.jpg)
9 |
GUIDE CABLE/SOUTIEN OEM PIAGGIO COMMON A LA RANGE-827847 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
11 |
WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
