Vehicle Exploded View - VESPA VESPA LXV 50 2T 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

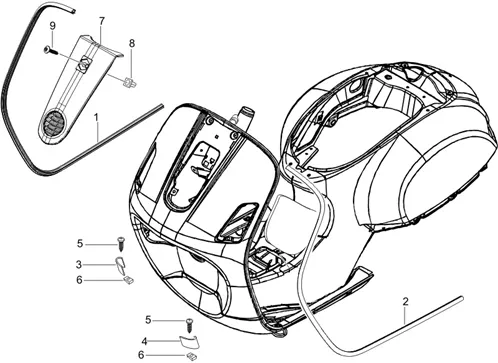

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/720/Vespa_LXV_50_2T_2006-2009_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/7/0/img/84570.jpg)
1 |
BORDURE DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO 50-125 VESPA LX, VESPA-S-622188 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/6/9/img/84569.jpg)
2 |
BORDURE DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 50-125 VESPA LX 2005 >, VESPA-S 2007 >-622187 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/1/img/78091.jpg)
3 |
AGRAPHE JONC DE LEG SHIELD FRONT RIGHT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-299965 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/0/img/78090.jpg)
4 |
AGRAPHE JONC DE LEG SHIELD FRONT LEFT OEM PIAGGIO 50-125 VESPA LX, VESPA-S-299964 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
5 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
6 |
NUT SHEET METAL (3. 5 PARKER) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM017403 More informationQuantity required : 2 |
|||||||||
7 |
|
|||||||||
|
7 |
COVER DE STEERING OEM PIAGGIO 50-125 VESPA LX UNPAINTED READY TO PAINT-655964 More informationQuantity required : 1 |
|||||||||
|
7 |
65596400VG - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/0/9/img/109309.jpg)
7 |
COVER COLONNE DE STEERING OEM PIAGGIO VESPA 50-125 LXV 2006 > 2009 GREY 780/A-65596470EP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
8 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
9 |
SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958 More informationQuantity required : 1 |
|||||||||
