Vehicle Exploded View - VESPA VESPA LXV 50 2T 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

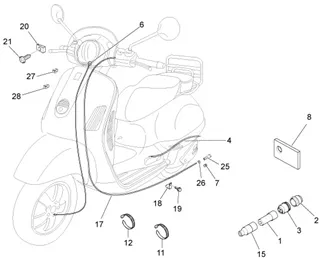

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/720/Vespa_LXV_50_2T_2006-2009_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/3/img/66083.jpg)
1 |
DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/8/img/66108.jpg)
2 |
PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/9/img/66109.jpg)
3 |
PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/0/4/8/img/83048.jpg)
4 |
CABLE/CONTROL/TRANSMISSION OF PUMP A OIL OEM PIAGGIO 50 VESPA LX, VESPA-S-601863 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/1/6/6/img/87166.jpg)
6 |
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER OEM PIAGGIO 50-125 VESPA LXV 2006 >-650838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/5/1/img/66051.jpg)
7 |
BUSH/EMBOUT DE CABLE OF BRAKE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-266040 More informationQuantity required : 1 |
||||||
8 |
666117-PROTECTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
11 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
12 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/4/img/66084.jpg)
15 |
BUTEE DE GAINE DE REPARTITEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-269572 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/9/6/2/img/89962.jpg)
17 |
CABLE/CONTROL/TRANSMISSION OF BRAKE REAR OEM PIAGGIO 50-125 VESPA LXV-665856 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/2/7/img/65927.jpg)
18 |
CLAMP OEM PIAGGIO COMMON A LA RANGE-216983 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
19 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/9/img/67059.jpg)
20 |
PLATE DE MAINTIEN DU CABLE OF BRAKE ON CASING ENGINE OEM PIAGGIO FLY, LIBERTY, TYPHOON, NRG, ZIP, VESPA LX, SPRINT, S-564497 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
21 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
|
21 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/4/img/65794.jpg)
25 |
PIVOT TRANSMISSION BRAKE REAR OEM PIAGGIO COMMON A TOUTE LA RANGE-179640 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/8/img/66088.jpg)
26 |
NUT REGLAGE BRAKE REAR OEM PIAGGIO COMMON A LA RANGE-270310 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
27 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 1 |
||||||
|
28 |
CM006904-OLLIER More informationQuantity required : 1 |
||||||
|
28 |
CM006913-SPRING More informationQuantity required : 1 |
