Vehicle Exploded View - VESPA VESPA LX 125 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

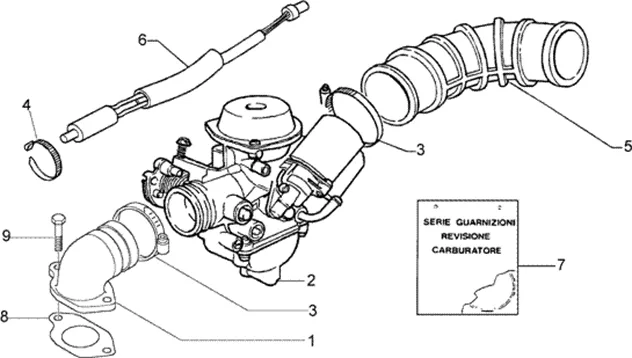

Moteur : T21 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/707/Vespa_LX_125_1998-2005_T21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/3/img/73173.jpg)
1 |
BOISSEAU WITH MEMBRANE OEM PIAGGIO 125 FLY 2005 >, LIBERTY 2006 >, X8 STREET 2004 > 2006, VESPA LX 2005 >, VESPA S 2007 >, TYPHOON 2010 >/APRILIA 125 SPORT-CITY ONE, SR MOTARD (WITH MEPLAT)-CM140302 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/3/img/69603.jpg)
1 |
FITTING/MANIFOLD INTAKE MAXI SCOOTER OEM PIAGGIO 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA S/APRILIA 125 SPORT-CITY, SR-MOTARD, MOJITO (FITTING)-849465 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/6/img/68776.jpg)
2 |
AGRAPHE AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-828822 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/9/img/73149.jpg)
2 |
CARBURETTOR CVEK-2600A OEM PIAGGIO 125 FLY 2000 > 2007, LIBERTY 2000 > 2007, VESPA LX 2000 >/APRILIA 125 MOJITO 2003 > 2007-CM129213 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/7/8/img/73178.jpg)
3 |
SPRING RAPPEL VOLET DE THROTTLE OEM PIAGGIO 125 FLY, VESPA LX 2005 >, VESPA-S 2007 >/APRILIA 125 MOJITO, SPORT-CITY-CM140903 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 2 |
||||||
4 |
CARBURETTOR TOP CAP OEM PIAGGIO 125 X8 SREET, LIBERTY, VESPA LX, VESPA-S, FLY-842514 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
4 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/6/6/img/73166.jpg)
5 |
AIGUILLE/POINTEAU OF CARBURETTOR OEM PIAGGIO 125 FLY, LIBERTY, X8 STREET, VESPA LX/APRILIA 125 MOJITO 2007 <-CM140205 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/8/img/68808.jpg)
5 |
SLEEVE ENTRE CARBURETTOR ET HOUSING AIR FILTER OEM PIAGGIO 125 LIBERTY, FLY, VESPA LX, VESPA-S-829001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/0/6/img/73206.jpg)
6 |
STARTER OEM PIAGGIO 125 FLY, LIBERTY, X8, VESPA LX-CM142904 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
6 |
RESISTOR OF CARBURETTOR OEM PIAGGIO 50-125 FLY 2005 > 2011, VESPA LX 2005 >, VESPA-S 2007 >, LIBERTY 2006 > 2016-82961R6 More informationQuantity required : 1 |
||||||
|
7 |
CM156706 - CUVETTE More informationQuantity required : 1 |
||||||
|
7 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/5/8/img/73158.jpg)
8 |
HAND OPEN FACE 82 OEM PIAGGIO 125 FLY, LIBERTY 2006 > 2012-CM129914 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/6/img/70346.jpg)
8 |
GASKET MANIFOLD/FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX/APRILIA 125 SPORT-CITY 2015 <-871167 More informationQuantity required : 1 |
||||||
|
9 |
CM140101-GIGLEUR MIN 35 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
9 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
|
9 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/4/1/img/69241.jpg)
10 |
CARBURETTOR FLOAT OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC-842522 More informationQuantity required : 1 |
||||||
|
11 |
CAPUCHON DE STARTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-828844 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/4/8/img/73248.jpg)
12 |
POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T ET MAXI SCOOTER 125 CC-CM147102 More informationQuantity required : 1 |
||||||
|
13 |
CM140403 - CUVETTE More informationQuantity required : 1 |
