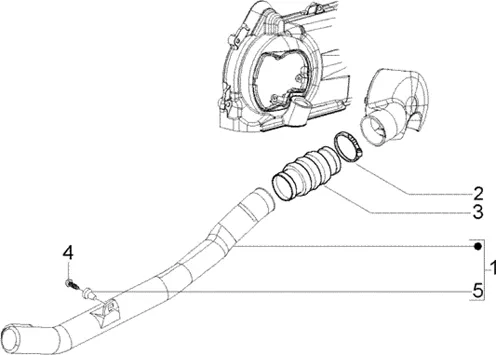

Vehicle Exploded View - VESPA VESPA LX 125 1998-2005 VESPA

Moteur : T17 TUYAU DE REFROIDISSEMENT COURROIE- BELT COOLING TUBE
Tuyau de refroidissement courroie- belt cooling tube
Search
COOLING PIPE ON TRANSMISSION HOUSING "PIAGGIO GENUINE PARTS" VESPA 50-125 LX, 125 VESPA-S, ET4 -576267-

1
P2R reference P2R reference 80810
Maker reference Maker reference 576267

HOSE DE REFROISISSEMENT COVER DE TRANSMISSION OEM PIAGGIO VESPA 50-125 LX, 125 VESPA-S, ET4-576267

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

2
P2R reference P2R reference 65742
Maker reference Maker reference 145298

HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298

More information

Quantity required : 1

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548

3
P2R reference P2R reference 66303
Maker reference Maker reference 298548

SOUFFLET/SLEEVE COOLING CASING OEM PIAGGIO 50-125 FLY, VESPA LX, VESPA-S-298548

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

4
P2R reference P2R reference 66068
Maker reference Maker reference 267958

SCREW AUTOTARAUDEUSE (L 20 MM) OEM PIAGGIO COMMON A LA RANGE-267958

More information

Quantity required : 1

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

5
P2R reference P2R reference 65832
Maker reference Maker reference 199190

AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190

More information

Quantity required : 1
