Vehicle Exploded View - VESPA VESPA LX 125 1998-2005 VESPA

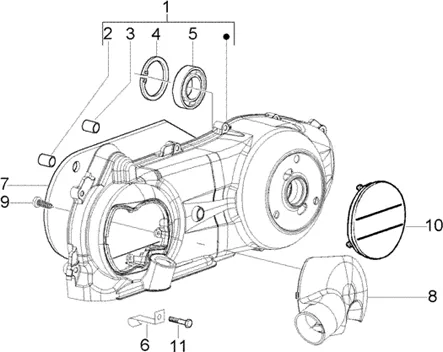

Moteur : T16 REFROIDISSEMENT CARTER
Refroidissement carter
Search
TRANSMISSION COVER "PIAGGIO GENUINE PART" LIBERTY, VESPA LX, VESPA S 125 -8721165-

1
P2R reference P2R reference 70416
Maker reference Maker reference 8721165

TRANSMISSION COVER "PIAGGIO GENUINE PART" LIBERTY, VESPA LX, VESPA S 125 -8721165

More information

Quantity required : 1

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

2
P2R reference P2R reference 72696
Maker reference Maker reference B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

More information

Quantity required : 2

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

3
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

4
P2R reference P2R reference 63823
Maker reference Maker reference 0066355

CIRCLIPS (D = 38) OEM PIAGGIO COMMON A TOUTE LA RANGE-006635

More information

Quantity required : 1

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

5
P2R reference P2R reference 66571
Maker reference Maker reference 4789853

BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853

More information

Quantity required : 1

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

6
P2R reference P2R reference 66610
Maker reference Maker reference 482291

CLAMP SHEET METAL DE MAINTIEN OEM PIAGGIO COMMON A LA RANGE-1C006656

More information

Quantity required : 1

Diaphragme pour air chaud

7
P2R reference P2R reference
Maker reference Maker reference 843708

Diaphragme pour air chaud

COVER DE COOLING DE CASING OEM PIAGGIO 125 LIBERTY 2008 <-484726

8
P2R reference P2R reference 79019
Maker reference Maker reference 484726

COVER DE COOLING DE CASING OEM PIAGGIO 125 LIBERTY 2008 <-484726

More information

Quantity required : 1

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

9
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146

More information

Quantity required : 3

COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106

10
P2R reference P2R reference 205687
Maker reference Maker reference CM1551065

COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106

More information

Quantity required : 1

COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106

10
P2R reference P2R reference 205687
Maker reference Maker reference CM155106

COVER/ENJOLIVEUR ROND CASING DE TRANSMISSION OEM PIAGGIO 125-250 VESPA GTS, 125 VESPA LX 2005 >, LXV, VESPA-S 2007 >-CM155106

More information

Quantity required : 1

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

11
P2R reference P2R reference 72725
Maker reference Maker reference B016792

SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792

More information

Quantity required : 10
