Vehicle Exploded View - VESPA VESPA GTV 300 SEI GIORNI ie E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

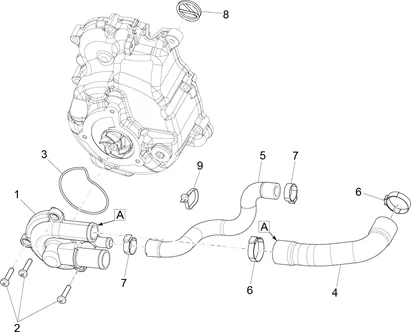

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/840/Vespa_GTV_300_SEI_GIORNI_ie_E4_ABS_2017_(EMEA)_01.19.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/6/img/70666.jpg)
1 |
COVER WATER PUMP (3 DURITES) OEM PIAGGIO 125-250-300 MP3, X7, 125-250 X9, X-EVO, BEVERLY, VESPA GTS/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC (COMPATIBLE WITH 8482585)-877528 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
2 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
3 |
O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/6/img/70686.jpg)
4 |
HOSE/HOSE WATER PUMP CYLINDER OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-878626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/1/img/70701.jpg)
5 |
HOSE COOLING (ENTRE PUMP ET CALORSTAT) OEM PIAGGIO 125-250-300 MAXI SCOOTER-878940 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/1/img/72881.jpg)
6 |
CLAMP HOSE COOLING (30MM) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-CM001922 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
7 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
8 |
SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
9 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 1 |
