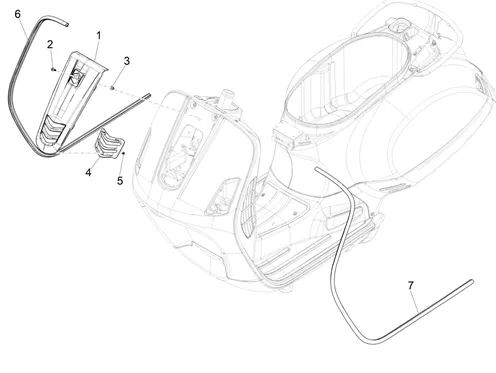

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/840/Vespa_GTV_300_SEI_GIORNI_ie_E4_ABS_2017_(EMEA)_02.26.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/0/7/img/75707.JPG)
1 |
COVER COLONNE DE STEERING UNPAINTED READY TO PAINT OEM VESPA GTS 125/300 2009 >-1B000885 More informationQuantity required : 1 |
||||||
1 |
1B000885500VV - CACHE-DIRECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
2 |
SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
3 |
AGRAPHE/CHEVILLE A EXPANSION OEM PIAGGIO COMMON A TOUTE LE RANGE-199190 More informationQuantity required : 1 |
||||||
|
4 |
1B004504500NA-GRILLE More informationQuantity required : 1 |
||||||
|
4 |
1B000954-GRILLE COVER STEERING AV More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
5 |
SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/8/img/81128.jpg)
6 |
BORDURE/JONC DE LEG SHIELD FRONT RIGHT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2018-577181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/2/7/img/81127.jpg)
7 |
BORDURE/JONC DE LEG SHIELD FRONT LEFT CHROME OEM PIAGGIO 125-250-300 VESPA GTS 2009 > 2018-577180 More informationQuantity required : 1 |
