Vehicle Exploded View - VESPA VESPA GTV 300 SEI GIORNI ie E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

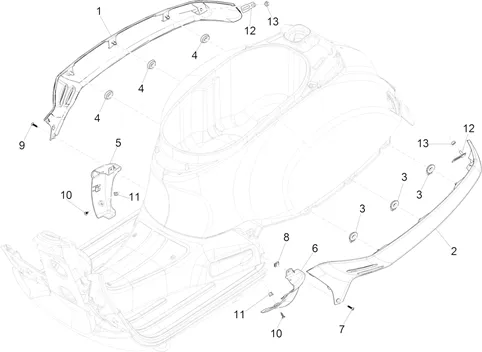

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/840/Vespa_GTV_300_SEI_GIORNI_ie_E4_ABS_2017_(EMEA)_02.32.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/3/8/5/4/img/83854.jpg)
1 |
REAR RIGHT SIDE COVER (LOW PART) "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS RAW TO BE PAINT -621138 More informationQuantity required : 1 |
||||||
1 |
62113850VV - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/3/8/9/img/146389.jpg)
2 |
1B003899500VV - COUVERCLE G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/4/9/img/140049.jpg)
2 |
PROTECTOR SIDE REAR LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 < UNPAINTED-1B003899 More informationQuantity required : 1 |
||||||
|
3 |
1B003782-BUFFER More informationQuantity required : 3 |
||||||
|
4 |
1B003904500VV - TERMINAL D. More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/6/1/img/140061.jpg)
5 |
COVER/EXTREMITE DE SPOILER RIGHT OEM PIAGGIO 125-250-300 VESPA GTS 2022 < UNPAINTED-1B003904 More informationQuantity required : 1 |
||||||
|
6 |
1B000591500VV - TERMINAL G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/2/1/1/img/153211.jpg)
6 |
COVER/EXTREMITE DE SPOILER LEFT OEM PIAGGIO 125-250-300 VESPA GTS 2018 < UNPAINTED-1B000591 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/8/img/96288.jpg)
7 |
SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
8 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/3/img/96283.jpg)
9 |
SCREW TORX (4. 2X21) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
10 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
11 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
||||||
|
12 |
623575-PLATE WITH SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
13 |
NUT (M6) EXHAUST OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288245 More informationQuantity required : 2 |
