Vehicle Exploded View - VESPA VESPA GTV 300 HPE E5 ABS RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

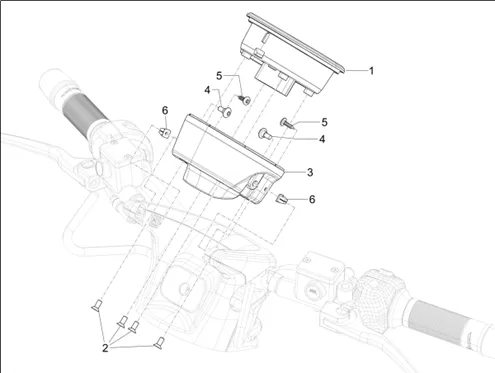

Guidon/direction : 03.02 GROUPE INSTRUMENTS - CRUSCOTTO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1254/Vespa_GTV_300_HPE_E5_ABS_RST_2023_(EMEA)_03.02.png)
1 |
1D004269-GROUP DA € - INSTRUMENTS More informationQuantity required : 1 |
||||||
|
2 |
2B004800-SCREW More informationQuantity required : 4 |
||||||
|
3 |
1B010972-INSTRUMENT BOX More informationQuantity required : 1 |
||||||
|
4 |
2B009423 M5X12 TORX SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
5 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/1/9/img/109019.jpg)
6 |
AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716 More informationQuantity required : 2 |
