Vehicle Exploded View - VESPA VESPA GTV 300 HPE E5 ABS RST 2023 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

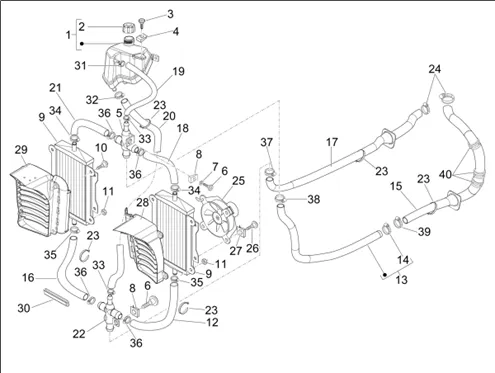

Châssis - parties plastiques - carrosseries : 02.55 INSTALATION DE REFOIDISSEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1254/Vespa_GTV_300_HPE_E5_ABS_RST_2023_(EMEA)_02.55.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/3/7/1/0/img/213710.JPG)
1 |
VASE EXPANSION/TANK COOLANT OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-1B012355 More informationQuantity required : 1 |
|||||||||
1 |
COOLANT TANK "PIAGGIO GENUINE PART" 125-250-300 VESPA GTS -657110 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/4/3/img/67743.jpg)
2 |
CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
3 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
|||||||||
|
5 |
577195-FITTING More informationQuantity required : 1 |
|||||||||
|
6 |
SCREW TORX (6X22) FAIRING OEM PIAGGIO COMMON A LA RANGE-CM179201 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
7 |
WASHER ELASTIC COURBE (8. 4X15X0. 8) OEM PIAGGIO COMMON A TOUTE LA RANGE-709047 More informationQuantity required : 1 |
|||||||||
|
8 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/0/img/81130.jpg)
9 |
RADIATOR OEM PIAGGIO 125-250-300 VESPA GTS 2009 >-577183 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
10 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178606 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
11 |
NUT FLANGE (M6) OEM PIAGGIO COMMON A LA RANGE-241936 More informationQuantity required : 6 |
|||||||||
|
12 |
57313R-HOSE More informationQuantity required : 1 |
|||||||||
|
13 |
1B010592-HOSE DE CONNEXION DE FITTING SUPÃ - RIEU More informationQuantity required : 1 |
|||||||||
|
14 |
CM226915-CLAMP A SPRING More informationQuantity required : 1 |
|||||||||
|
15 |
653501-HOSE More informationQuantity required : 1 |
|||||||||
|
16 |
577201-HOSE More informationQuantity required : 1 |
|||||||||
|
17 |
656437-HOSE More informationQuantity required : 1 |
|||||||||
|
18 |
1B003454-TUBE More informationQuantity required : 1 |
|||||||||
|
19 |
1B003456-TUBE More informationQuantity required : 1 |
|||||||||
|
20 |
57314R-HOSE WATER RADIATOR More informationQuantity required : 1 |
|||||||||
|
21 |
1B003455-TUBE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/1/0/img/89310.jpg)
22 |
FITTING 5 VOIS DE COOLING OEM PIAGGIO 125-250-300 VESPA GTS, GTV-656449 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
23 |
HOSE CLAMP NYLON TYPE RILSAN 180 MM OEM PIAGGIO COMMON A LA RANGE-145298 More informationQuantity required : 5 |
|||||||||
|
24 |
675874 - COLLIER SERR. TUBE; More informationQuantity required : 2 |
|||||||||
|
25 |
VENTILATEUR OEM PIAGGIO VESPA 125-250 GTS, GTV-584669 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
26 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 3 |
|||||||||
|
27 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/1/3/2/img/81132.jpg)
28 |
PRISE AIR RADIATOR LEFT OEM PIAGGIO 125-250-300 VESPA GTS-577187 More informationQuantity required : 1 |
|||||||||
|
29 |
622839-CANALISATION FOR AIR More informationQuantity required : 1 |
|||||||||
|
30 |
CM077703-PROTECTOR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/7/4/1/img/204741.jpg)
31 |
HOSE CLAMP HOSE (15. 7) OEM PIAGGIO COMMON A LA RANGE-CM0019026 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
32 |
CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904 More informationQuantity required : 1 |
|||||||||
|
33 |
CM226913-CLAMP A SPRING More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
34 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 2 |
|||||||||
|
35 |
CM226912-CLAMP A SPRING More informationQuantity required : 2 |
|||||||||
|
36 |
CM226910-CLAMP FBS 24/12 More informationQuantity required : 4 |
|||||||||
|
37 |
CM226914-CLAMP A SPRING More informationQuantity required : 1 |
|||||||||
|
38 |
CM226911-CLAMP FBS 26/12 More informationQuantity required : 1 |
|||||||||
|
39 |
CM226915-CLAMP A SPRING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/5/img/72905.jpg)
40 |
CLIPS ATTACHE FASCEAU ORINE PIAGGIO COMMON A LA RANGE-CM006903 More informationQuantity required : 3 |
|||||||||
