Vehicle Exploded View - VESPA VESPA GTV 300 HPE E5 ABS RST 2023 (EMEA) VESPA

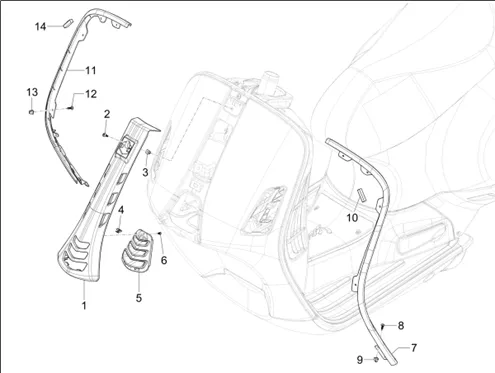

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
Tablier avant
Search
1B010957 - CACHE-DIRECTION

1
P2R reference P2R reference 215917
Maker reference Maker reference 1B010957

1B010957-COVER-STEERING

More information

Quantity required : 1

1B010957400Q03 - CACHE COLONNE DE DIRECTION PEINT

1
P2R reference P2R reference 215990
Maker reference Maker reference 1B010957400Q03

1B010957400Q03-COVER COLONNE DE STEERING PEINT

More information

Quantity required : 1

1B010957400XN2 - CACHE COLONNE DE DIRECTION PEINT

1
P2R reference P2R reference 215991
Maker reference Maker reference 1B010957400XN2

1B010957400XN2-COVER COLONNE DE STEERING PEINT

More information

Quantity required : 1

SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101

2
P2R reference P2R reference 96288
Maker reference Maker reference CM179101

SCREW TORX (5X22. 6) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM179101

More information

Quantity required : 1

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

3
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 1

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

4
P2R reference P2R reference 73404
Maker reference Maker reference D9004468091

AGRAPHE OEM PIAGGIO COMMON A TOUTE LA RANGE-D9004468091

More information

Quantity required : 3

1B011020000A17 - GRILLE DE PROTECTION DE COLONNE DE DIRE

5
P2R reference P2R reference 215992
Maker reference Maker reference 1B011020000A17

1B011020000A17-GRILLE DE PROTECTOR DE COLONNE DE DIRE

More information

Quantity required : 1

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

6
P2R reference P2R reference 63854
Maker reference Maker reference 0084325

SCREW PARKER CRUCIFORME (3, 5X9, 5) OEM PIAGGIO COMMON A LA RANGE-008432

More information

Quantity required : 1

1B009644000NU - BORD DE TABLIER G

7
P2R reference P2R reference 215920
Maker reference Maker reference 1B009644000NU

1B009644000NU-EDGE DE LEG SHIELD G

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

8
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 7

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

9
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 7

1B011049 - TAMPON

10
P2R reference P2R reference 215921
Maker reference Maker reference 1B011049

1B011049-BUFFER

More information

Quantity required : 1

1B009645000NU - BORD DE TABLIER D

11
P2R reference P2R reference 215922
Maker reference Maker reference 1B009645000NU

1B009645000NU-EDGE DE LEG SHIELD D

More information

Quantity required : 1

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

12
P2R reference P2R reference 73357
Maker reference Maker reference CM178601

SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601

More information

Quantity required : 7

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

13
P2R reference P2R reference 109019
Maker reference Maker reference 157716

AGRAPHE/CHEVILLE A EXPENSION OEM PIAGGIO COMMON A LA RANGE-157716

More information

Quantity required : 7

1B011049 - TAMPON

14
P2R reference P2R reference 215921
Maker reference Maker reference 1B011049

1B011049-BUFFER

More information

Quantity required : 1
